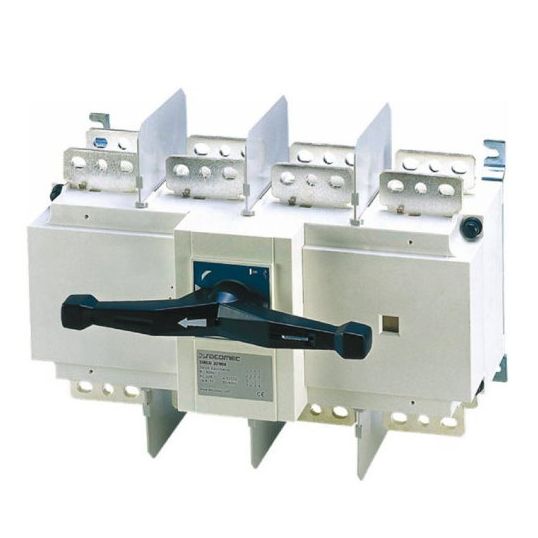

Socomec Load-Break Switch Front Operated 3P 250A AC21 132 kW AC23 Base Mount IP65

Description

Load-Break Switch Front Operated, 400-690 Volt AC, 220/500 Volt DC, 250 Amp, AC21 Rating: 250 Amp, AC23 Rating: 250 Amp @ 415 Volt, 132 kW @ 400/415 Volt, 3 Pole, Cable Size: 95-150 mm, Tightening Torque: 10 Nm, IP65, Base Mount/Panel, 160 mm Height, 160 mm Width, 135 mm Depth

Key Specifications

Barcode (EAN-13)	9321807196316
SKU	SOCSLB2503P
Brand	Socomec
Range Name	SIRCO SLB
Product Type	Load-Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double break per pole offers high durability and short-circuit withstand Use of glass fibre reinforced polyester provides high mechanical and thermal resistance (does not include SLBM or VLBM modular series) Quick and easy to install thanks to good centre to centre distance and connection accessories including copper connecting links Wide range of accessories available which is flexible in adapting to various applications and reduces the cost of management and storage All Socomec load break switches are compatible with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red / yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SLB2503P
AC23 Rating	250 Amp 132 kW @ 400-415 Volt
Cable Size	95-150 sq-mm
Current	250 Amp
Depth	135 mm
Height	160 mm
IP Rating	IP65
Number Of Poles	3 Pole
Tightening Torque	10 Nm
Voltage	400-690 Volt AC/220-500 Volt DC
Width	160 mm
