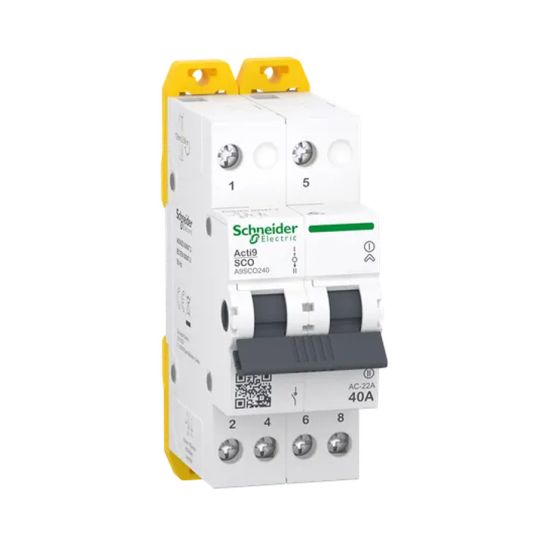

Schneider C/O Switch 2P 40A DIN Rail IP20/IP40

This Acti9 product is a changeover switch. It is a 2P switch with 40Amp le rated operational current, and the operating frequency is from 50Hz to 60Hz. The Acti9 Changeover Switches provide the perfect solution for low voltage distribution systems that need a continuous power supply. They have been developed and meticulously tested for long life. This product complies with EN/IEC 60947-3 standard. It has a CE and RCM quality labels. It is intended for new or renovated installation in buildings. The electrical and mechanical endurance is going up to 10000 cycles. It has a position contact indicator and is suitable for industrial isolation. This device comes with padlocking, and also with toggle control. It has a screw terminals connection at the top and bottom. The connection allows rigid copper cables with a cable cross section from 1mm² to 16mm². The connection allows flexible or with ferrule copper cables with a cable cross section from 1mm² to 10mm² . The Ue rated operational voltage is from 400 to 415Volt AC. The Ui rated insulation voltage is up to 690Volt. The Uimp rated impulse withstand voltage of 6kV. The Icm rated short-circuit making capacity is 0.8kA. The Icw rated short-time withstand current is 0.8kA at 400 to 415Volt AC with a duration for 1s. It can be mounted on 35mm DIN rail for modular installation. The dimensions are (W) 35mm x (H) 85mm x (D) 44mm. The product weight is 166g. The pollution degree is 3. The utilisation category is AC-22A. The wire stripping length is 12mm (top and bottom). The tightening torque of the connection is 2.5N.m (top and bottom) for the PZ1 screwdriver type. The IP degree of protection is IP20 and becomes IP40 when the device will be inside the enclosure. The operating temperature is from -25 to 60 deg C
