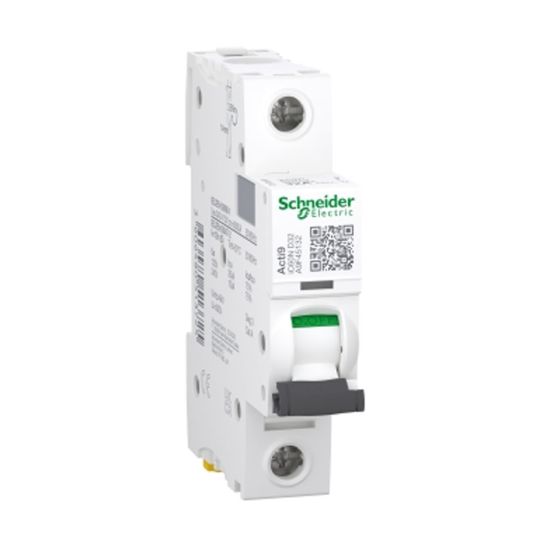

Schneider Miniature Circuit Breaker D Curve 1Pole 32Amp 10kA 240V 1Module 18mm DIN Rail/Clip-On Mount

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10 kA at 220 Volt AC to 240 Volt AC conforming to EN/IEC 60947-2 standard and 6000 Amp at 240 Volt AC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500 Volt AC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9 mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 18 mm x (H) 85 mm x (D) 78.5 mm. The weight is 0.125 kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35 to 70 deg C. The storage temperature is -40 to 85 deg C.
