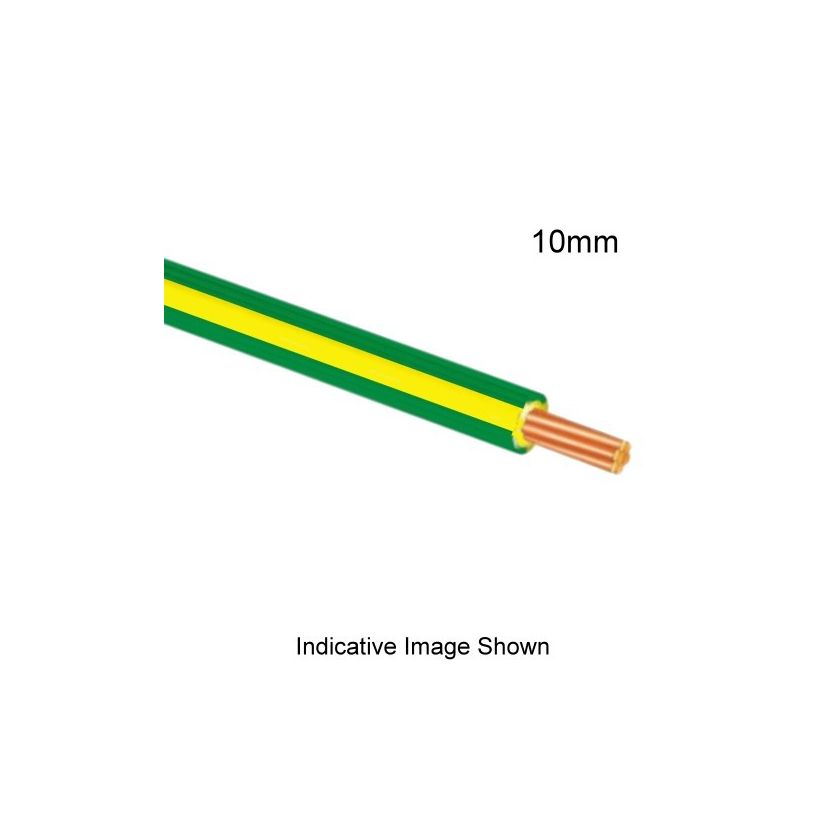

Building Wire 1 Core 10mm V-90 PVC Green/Yellow 0.6/1kV

Olex 10mm Building Wire Green/Yellow 1mtr

PRODUCT CODE:
OLX7/135BWEWA5
Std Pack Size
500
OUR P/N:
OLX7/135BWEWA5

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 10 mm, Stranded Copper, 0.6/1 kV, 7/1.35 mm Strands, 6 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km AC - 2.23 Ohm/km, Insulation Resistance: 7.2 MOhm/km, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Additional Information

Additional Information
Brand Olex
Standard Pack Size 500
UNSPSC Class 26121500
UOM MTR
Vendor Product BAAP13A1001AAHN
Conductor Type Stranded Copper
Conductor Resistance DC: 1.83 Ohm/km AC: 2.23 Ohm/km
Insulation Colour Green/Yellow
Insulation Resistance 7.2 MOhm/km
Insulation Thickness 1 mm
Insulation Material V-90 PVC
Overall Diameter 6 mm
Product Type Building Wire
Stranding 7/1.35 mm
Standards AS/NZS 1125 AS/NZS 5000.1
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 10 mm
