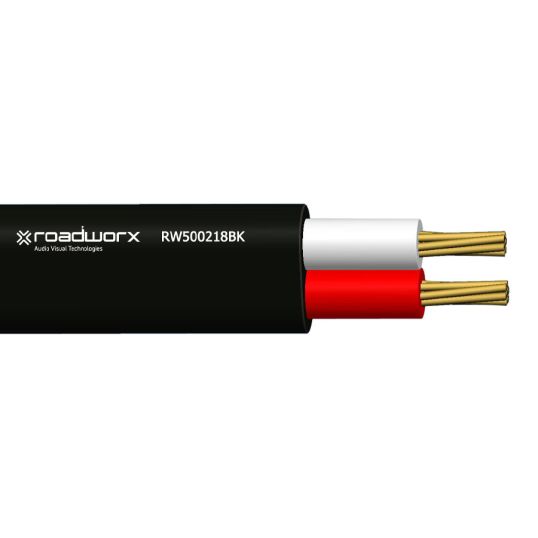

Speaker Cable, 18 AWG, Bare Copper, Bend Radius: Install: 35mm, 2 Core, Elongation: Insulation: >100%; Sheath: >100%, Pulling Tension: 95 N, Tensile Strength: Insulation: >=13.6 N/mm, Sheath: >=12 N/mm, Stranding: 24/0.19 +/-0.006mm, Insulation Thickness: >=0.5mm, Sheath Thickness: >=0.5mm, Conductor Resistance: DC: 26.4 Ohm/km at 20 deg C, PVC Insulation, PVC Sheath, Red, White Insulation, Black Sheath, 3.5 +/-0.2mm x 6 +/-0.2mm Overall Diameter, 100 mtr Length,-15 to 70 deg C
Additional Information
Brand | Madison |
---|---|
Range Name | Roadworx |
Standard Pack Size | 100 |
UNSPSC Class | 43221700 |
UOM | MTR |
Vendor Product | RW500218BK100 |
Conductor Size | 18 AWG |
Product Type | Speaker Cable |
Sheath Colour | Black |
Insulation Thickness | >=0.5mm |
Overall Diameter | 3.5 +/-0.2 x 6 +/-0.2mm |
Temperature | -15 to 70 deg C |
Sheath Material | PVC |
Length | 100 mtr |
Conductor Resistance | DC: 26.4 Ohm/km at 20 deg C |
Insulation Colour | Red/White |
Elongation | Insulation: >100%; Sheath: >100% |
Pulling Tension | 95 N |
Tensile Strength | Insulation: >=13.6 N/sq-mm/Sheath: >=12 N/sq-mm |
Number of Cores | 2 Core |
Bend Radius | Install: 35mm |
Insulation Material | PVC |
Sheath Thickness | >=0.5mm |
Stranding | 24/0.19 +/-0.006mm |
Conductor Type | Bare Copper |
