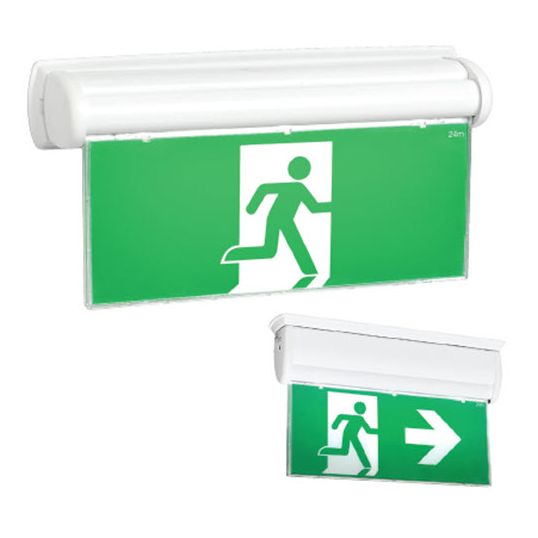

Clevertronics Emergency Luminaire LED Surface Swing Blade 3.5W Maintained Polycarbonate PICTO Running Man Inserts IP20

chevron-left
loader
Loading...

Description

chevron-down
The Swing blade Exit is a universal, blade style exit that meets architectural requirements for a premium style exit without sacrificing ease of installation and long service life.. The Swing blade Exit uses a flat panel diffuser with drop-in legend inserts secured by a patented tamper proof legend cover. All diffuser combinations of single-sided and Double sided, 'EXIT' or 'Pictograph' options can be configured on site from one box.

Key Specifications

chevron-down
SKU
CLECSBLED
Brand
Clevertronics
Range Name
Swingblade
Product Type
Emergency Exits

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • All directional decals in one box
  • Clevertest Plus system compatible
  • Applications are office buildings, retail outlet, theatres, galleries, shopping centres, apartments
  • With Lithium-Ion Phosphate and Nano Phosphate battery technology
  • our premium LED fittings are the most reliable
  • low maintenance energy efficient exits on the market
Standard Pack Size 1
UNSPSC Class 39111700
UOM EA
Vendor Product CSBLED
Average Lamp Life 100000 hrs
Diffuser Type Acrylic and Polycarbonate
Colour White
Input Frequency 50 Hz
Height 263 mm
Input Voltage 240 Volt AC
Lamp Type LED
Material Metal
IP Rating IP20
Operating Mode Maintained
Mounting Method Ceiling/Wall/Surface
Viewing Distance 24 mtr
Width 230 mm
Temperature 1 to 40 deg C
Wattage 3.5 Watt Standby/6.2 Watt Max
