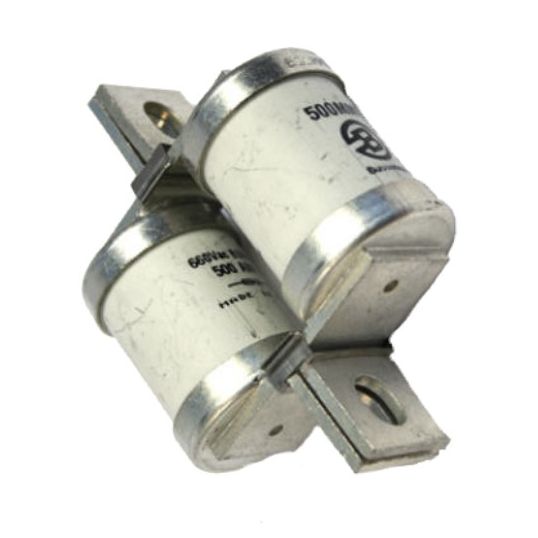

Bussmann Semiconductor Fuse Link High Speed Bolt In Centre 500A 690VAC/350VDC 200kA 38x113mm
Loading...
Description
Semiconductor Fuse Link High Speed Bolt In Centre, 690 VAC/350 VDC, 500 Amp, 85mm Fixing Centres, Interrupt Capacity: 200 kA, Class aR, Bolt In Centre Tag, 38mm Diameter x 113mm Length
Key Specifications
| SKU |
BUS500MMT
|
|---|---|
| Brand |
Bussmann
|
| Range Name |
BS88 Semi Conductor
|
| Product Type |
Fuse Links Semiconductor
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 500MMT |
| Dimensions | 38 mm Diameter x 113 mm Length |
| Current | 500 Amp |
| Fixing Centres | 85 mm |
| Interrupt Capacity | 200 kA |
| Voltage | 690 Volt AC/350 Volt DC |
| Tag Type | Bolt In Centre |
| Utilisation Category | Class aR |
