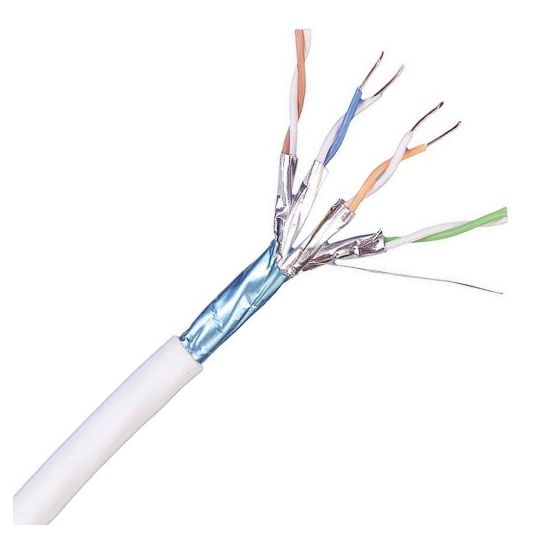

AMP Netconnect CS54Z3 F/FTP Data Cable Cat7 4 Pair 23AWG Polyolefin/LSZH White 500M

$AMP_Netconnect\AMP_1711163_1.jpg$

Description

CAT 7 Data Cable F/FTP, 80 Volt, Solid, 23 AWG, 1.5 mm Conductor Diameter, 9.38 Ohm/100m Conductor Resistance, 600 MHz Frequency Bandwidth, Cat 7 F/FTP Shielded, 4 Pair, 29.6 mm Bend Radius, Bare Copper Conductor, Polyolefin Insulation, LSZH Sheath, White Sheath, 20 to 60 deg C, 500 mtr Length, 7.3 mm Outside Diameter

Key Specifications

SKU	AMP1711163-1
Brand	AMP Netconnect
Range Name	NETCONNECT

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1711163-1
Conductor Material	Bare Copper
Cable Type	Cat 7 F/FTP Shielded
Conductor Diameter	1.5 mm
Conductor Resistance	9.38 Ohm/100m
Bend Radius	29.6 mm
Conductor Size	23 AWG
Conductor Type	Solid
Frequency Bandwidth	600 MHz
Insulation Material	Polyolefin
Outside Diameter	7.3 mm
Pair Count	4 Pair
Sheath Colour	White
Sheath Material	LSZH
Temperature	20 to 60 deg C
Voltage	80 Volt
