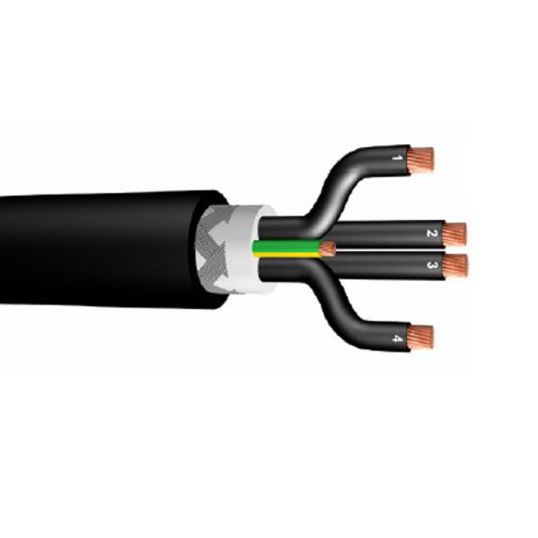

WWC Conflex Flexible Control Cable VSD EMC Screened 4 Core & Earth 4mm 0.6/1kV Copper PVC/TACBS/TPE Black

Description

Flexible Control Cable, VSD EMC Screened, 4 Core & Earth, 4 mm, Class 5 Stranded Bare Copper, 0.6/1 kV, 4.6 mm Core Diameter, 14.6 mm Earth Conductor, 18.4 mm Overall Diameter, 138 mm Bend Radius, Tinned Annealed Copper Braid Screen, V-75 PVC Insulation, TPE Sheath, Black with White Numbered, Green/Yellow Cores, Black Sheath, -25 to 75 deg C, AS/ NZS 5000.1

Key Specifications

SKU	WWC8110
Brand	WWC
Range Name	Conflex
Product Type	Flexible Control Cable VSD EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	8110
Bedding Diameter	14.6 mm
Bend Radius	138 mm
Conductor Size	4 mm
Conductor Type	Class 5 Stranded Copper
Core Colours	Green/Yellow/Black/White Numerals
Core Diameter	4.6 mm
Insulation Material	V-75 PVC
Number of Cores	4 Core + Earth
Overall Diameter	18.4 mm
Screen Material	Tinned Annealed Copper Braid
Sheath Colour	Black
Sheath Material	TPE
Standards	AS/ NZS 5000.1
Temperature	-25 to 75 deg C
Voltage	0.6-1 kV
