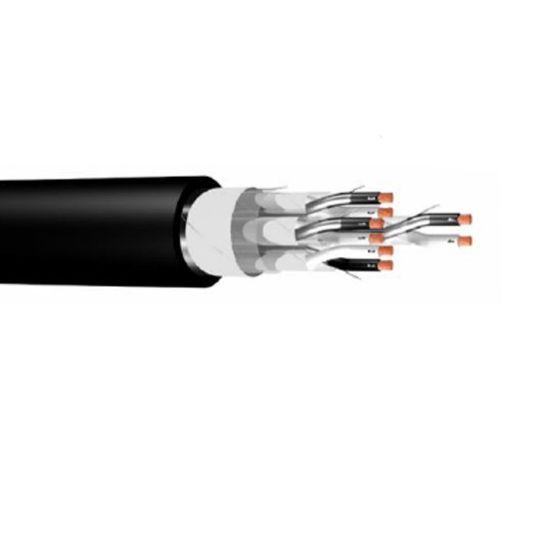

WWC Machlink 110 Instrumentation Cable Unarmoured 2 Pair Individually & Overall Screened 1.5mm PVC/AL/PVC Black

chevron-left
loader
Loading...

Description

chevron-down
Instrumentation Cable, Unarmoured, 2 Pair, Individually and Overall Screened, 1.5 mm, Class 2 Bare Copper, 110/150 Volt, 7/0.5 mm Strands, 10.2 mm Overall Diameter, Bend Radius: Static - 61.2 mm, Conductor Resistance: 13.6 Ohm/km, Insulation Resistanc: 140 MOhm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath

Key Specifications

chevron-down
SKU
WWC5732
Brand
WWC
Range Name
Machlink Type 110
Product Type
Instrumentation Cable Unarmoured

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product 5732-NLA
Bend Radius Static 61.2 mm
Conductor Resistance 13.6 Ohm/km
Conductor Size 1.5 mm
Conductor Type Class 2 Copper
Insulation Material V-90 PVC
Insulation Resistance 140 MOhm/km
Number of Pairs 2 Pair
Overall Diameter 10.2 mm
Screen Coverage 100%
Screen Format Individual & Overall Screened
Screen Material Aluminium/Polyester Tape
Sheath Colour Black
Sheath Material V-90 PVC
Stranding 7/0.5 mm
Voltage 110-150 Volt
