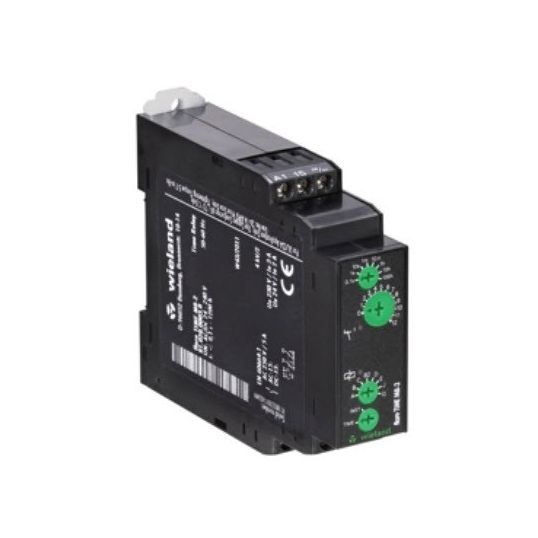

Wieland Timer Relay 2CO M8 4 Time Switch Multifunction 24-240VAC/DC/20.4-265VAC/DC Rail Mount

Description

Timer Relay, 24-240 Volt AC/DC/20.4-265 Volt AC/DC, 5 Amp, 6.6 VA at 240 Volt AC, 1.2 Watt at 24 V DC, 2CO, Resistance: 100 MOhm, Timing Function: 4 Time Switch, Multifunction, Timing Range: 0.1 sec/1 sec/10 sec/1 min/10 min/1 hr/10 hr/100 hr, Tightening Torque: 0.49 N/m, Screw Terminal Clamp, Rail Mount, IP20, Body Plastic, AgNi, -20 to 55 deg C, 89.4 mm Height, 22.5 mm Width, 100 mm Depth

Key Specifications

SKU	WIE81.020.0003.0
Brand	Wieland
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	8 selectable operating modes Multi range time settings 8 time ranges Synchronous/time controlled mode selectable (for output 2)
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	81.020.0003.0
Contact Configuration	2 Changeover
Current	5 Amp
Depth	100 mm
Height	89.4 mm
Mounting Method	Rail
IP Rating	IP20
Power Rating	6.6 VA @ 240 Volt AC/1.2 Watt @ 24 V DC
Temperature	-20 to 55 deg C
Tightening Torque	0.49 N/m
Terminal Connection	Screw Clamp
Timing Function	4 Time Switch/Multifunction
Timing Range	0.1 Second/1 Second/10 Seconds/1 Minute/10 Minutes/1 Hour/10 Hours/100 Hours
Voltage	24-240 Volt AC/DC/20.4-265 Volt AC/DC
Width	22.5 mm
