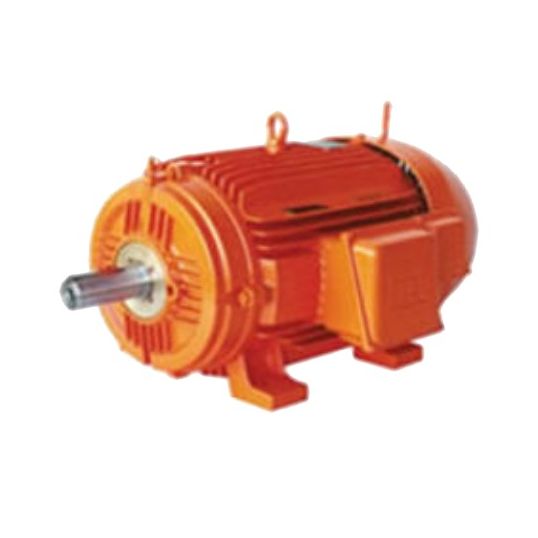

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 110kW 3Ph 415V 280S/M Frame Foot B3R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 180 Amp, 150 HP, 50 Hz, 3 Phase, 2976 rpm, 110 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 280S/M, 80 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.89, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 36.0 kgfm, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 95.4%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 1101 mm Length x 751 mm Width x 686 mm Height

Key Specifications

SKU	WEGKTE49PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	KTE49PHEM
Bearing Type	Roller
Current	180 Amp
Duty Cycle	S1
Efficiency	95.4%
Frame	Size 280S/M
Frame Material	Cast Iron
Enclosure Type	IC411-TEFC
Frequency	50 Hz
Horsepower	150 kW
Insulation Class	Class H
Height	686 mm
IP Rating	IP66
Mounting Method	Foot
Number Of Poles	2 Pole
Output	110 kW
Phase	3 Phase
Power Factor	0.89
Rotation	Both (CW and CCW)
Service Factor	1.15
Shaft Material	Carbon Steel SAE 1040/45
Speed	2976 rpm
Shaft Size	80 mm
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	36.0 kgfm
Voltage	415 Volt AC
Width	751 mm
