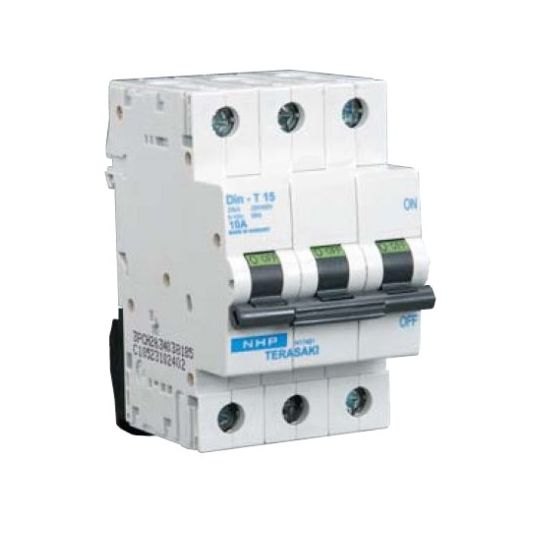

Terasaki Miniature Circuit Breaker C Curve 6Amp 25 kA 3Pole 3Module 54mm DIN 35mm Rail Mount

Description

Miniature Circuit Breaker C Curve C Curve, 415 Volt AC, 6 Amp, 50/60 Hz, Interrupt Capacity: 25 kA, Number of Modules: 3, 54mm Module Width, Number of Poles: 3, 2, Trip Characteristic: C Curve, 4.5 N/m Tightening Torque, 1/35 mm Min/Max, Rigid, 0.75/25 mm Flexible (Top)/(Bottom) Terminal Capacity, IP20, IP40, 4000 Cycles, DIN 35mm Rail,-25 to 55 deg C, 86mm Height x 54mm Width x 76mm Depth

Key Specifications

Barcode (EAN-13)	5413656759485
SKU	TERDIN-T15306C
Brand	Terasaki
Range Name	Din-T15
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High speed and rapid arc quenching technology ensuring the highest level of protection is provided Free tripping mechanism even if toggle is locked ON or OFF
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTCB15306C
Depth	76 mm
Current	6 Amp
Electrical Life	4000 Cycles
Frequency	50/60 Hz
Height	86 mm
Interrupt Capacity	25 kA
IP Rating	IP20/40
Modules	3 Module 54mm
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Phase	2 Phase
Temperature	-25 to 55 deg C
Tightening Torque	4.5 Nm
Voltage	415 Volt
Width	54 mm
