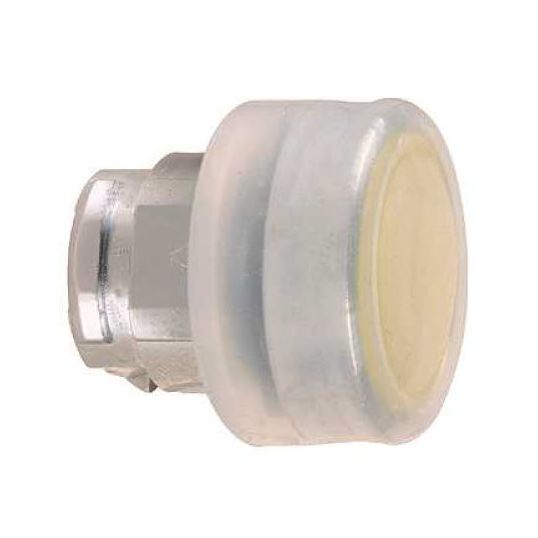

Schneider Pushbutton Actuator Only Booted Head Metal Body k Non Illuminated Momentary Yellow 22mm Panel

Description

Pushbutton Actuator Only Booted Head Metal Body, Size: 22 mm, Non-Illuminated, Unmarked, Momentary Action, Projecting Head, Spring Return Reset, Tightening Torque: 0.6 N/m, IP66, IP67, Screw Terminal Clamp/Plug-In/Printed Circuit Board/Faston, Mounting Diameter: 22 mm, Panel Mount, Metal Housing, Chromium Plated Metal Bezel, Yellow, -40 to 70 deg C, 30 mm Height, 30 mm Width, 35 mm Depth

Key Specifications

Barcode (EAN-13)	3389110888010
SKU	TEEZB4-BP5
Brand	Schneider
Range Name	Harmony Style 4
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB4BP5
Colour	Yellow
Depth	35 mm
Head Type	Clear Booted Projecting
Height	30 mm
IP Rating	IP66/67
Mounting Diameter	22 mm
Mounting Method	Panel
Operator Profile	Unmarked
Operator Action	Non-Illuminated Momentary Action
Reset Type	Spring Return
Temperature	-40 to 70 deg C
Size	22 mm
Tightening Torque	0.6 N/m
Terminal Connection	Screw Clamp/Plug-In/Printed Circuit Board/Faston
Width	30 mm
