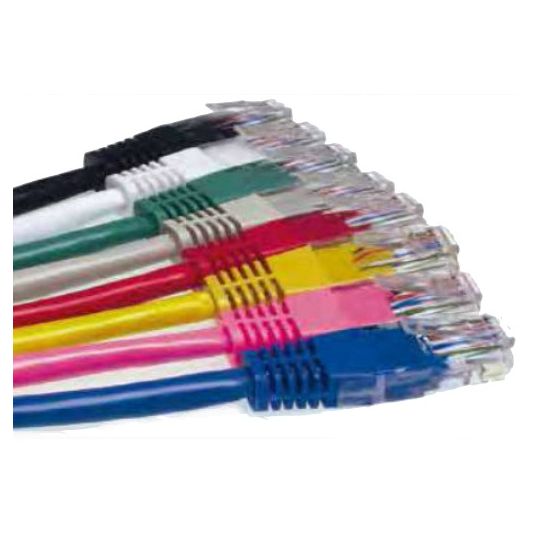

Stronglink UTP Patch Cord Cat5e RJ45-RJ45 24AWG PVC Blue 1M

Description

UTP Patch Cord Cat5e, Plug: >= 1.5 Amp, 24 AWG, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 1 mtr Cord, 5.4mm +/-0.2mm Cable Diameter, <= 10 mOhm Contact Resistance, >= 500 mOhm Insulation Resistance, >= 1 KV RMS Dielectric Strength, >= 750 Mating Cycles Durability, Wiring Scheme: T 568 A or T 568 B, Cable To Plug Tensile Strength: >= 89 N, <= 1 Ohm Plug DC Resistance, Stranded Bare Copper Wire Conductor, Phosphor Bronze Contact, CM Grade PVC Sheath, Flame Retardant Plastic Plug Boot, Blue Sheath,-10 to 60 deg C

Key Specifications

Barcode (EAN-13)	9337376007519
SKU	STKPLC5E1BL
Brand	Stronglink
Product Type	Cat5E Patch Cord

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	8-position unscreened modular plug (RJ45) with 50 µ-in of gold over nickel contact
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	STROPLC5E1BL
Cable Diameter	5.4mm
Cable To Plug Tensile Strength	>= 89 N
Conductor Material	Stranded Bare Copper Wire
Conductor Size	24 AWG
Connector A	RJ45
Connector B	RJ45
Contact Material	Phosphor Bronze
Contact Resistance	<= 10 mOhm
Cord Length	1 mtr
Current	>= 1.5 Amp
Durability	>= 750 Mating Cycles
Dielectric Strength	>= 1 KV RMS
Insulation Resistance	>= 500 mOhm
Plug Boot Material	Flame Retardant Plastic
Plug DC Resistance	<= 1 Ohm
Sheath Colour	Blue
Sheath Material	CM Grade PVC
Temperature	-10 to 60 deg C
Wiring Scheme	T568A/B
