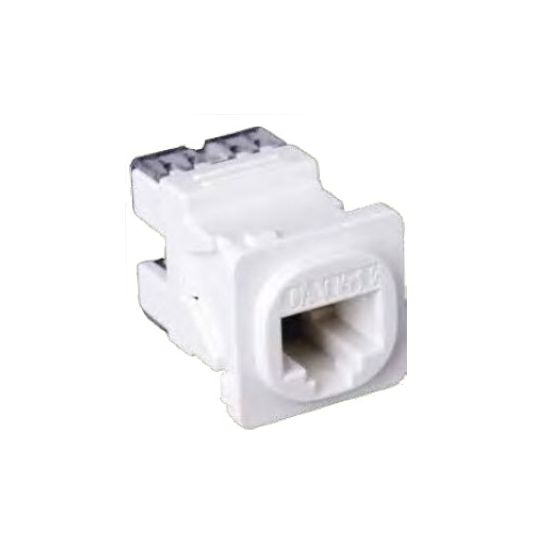

Stronglink Outlet Mechanism Cat5e UTP RJ45 8P T568A/B White Fits Clipsal/HPM Wall Plates

Description

Outlet Mechanism Cat5e UTP RJ45, ? 1.5 Amp, 22-26 AWG, RJ45 8P Connector, Cat5e Unscreened Cable, ? 500 MOhm Insulation Resistance, ? 20 mOhm Contact Resistance, ? 750 Cycles Durability, ? 133 N Plug Retention Force, Wiring Scheme: T568A/B, Flammability: UL94V-0, Plastic Housing, 50 µ-in Gold Over Nickel Contact Plating, White,-10 to 60 deg C

Key Specifications

Barcode (EAN-13)	9337376005928
SKU	STKJC5WH
Brand	Stronglink

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low profile body fits directly into Clipsal/HPM wall plates 8-position unscreened modular connector (RJ45) with 50 µ-in of gold over nickel contacts Colour coded for T568A/B termination Suitable for Category 5e/Class D links and channels
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	STROJC5WH
Cable Type	Cat5e Unscreened
Colour	White
Conductor Size	22-26 AWG
Connector	RJ45 8P
Contact Plating Material	50 micron Gold Over Nickel
Contact Resistance	20 mOhm
Current	1.5 Amp
Durability	750 Cycles
Flammability	UL94V-0
Housing Material	Plastic
Insulation Resistance	500 MOhm
Temperature	-10 to 60 deg C
Wiring Scheme	T568A/B
