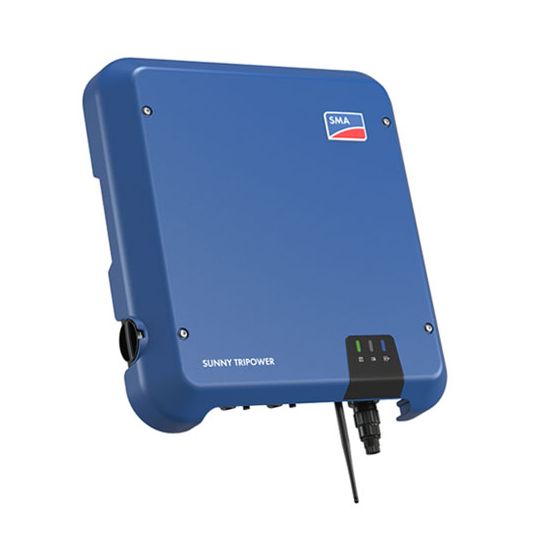

SMA Sunny Tripower Solar Inverter 2 MPPT Three Phase 3kW

Description

Solar Inverter, 3 Phase, 6000 Watt Input, 850 Volt DC Input, 580 Volt DC Nominal, 140-800 Volt DC MPPT Voltage Range, 175 Volt DC Start-up, 12 Amp Max. Input, 2 MPPTs, 3 kW Output, 3000 VA Max. Apparent, 180-280 Volt AC Operating, 220/415 Volt, 3/N/PE AC Nominal, 50 Hz, 3 x 4.5 Amp Output, 1, Adjustable- 0.8 Overexcited to 0.8 Underexcited Power Factor, 98.2% Efficiency, Transformerless, WLAN/Ethernet/RS485, Smartphone, Tablet, Laptop Display, Convection Cooling, 30 dBA, SUNCLIX/AC Connector, IP65, 4K4H Climate Category, -25 to 60 deg C, 100% Relative Humidity, 435 mm Width x 470 mm Height x 176 mm Depth, 17 kg

Key Specifications

SKU	SSTSTP3.0-3AV-40
Brand	SMA
Range Name	Sunny Tripower
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	One-person installation due to low weight of 17 kg Compact design means minimum space requirements 100% plug and play installation Free online monitoring via sunny places Automated service thanks to SMA smart connected Use of surplus energy through dynamic active power limitation Yield increase without installation effort due to integrated shade management SMA ShadeFix Intelligent energy management and storage solutions can be added anytime Can be combined with TS4-R components for module optimization
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	STP3.0-3AV-40
AC Operating Frequency	50 Hz
AC Operating Voltage	180-280 Volt
AC Nominal Voltage	220-415 Volt-3/N/PE
AC Max. Apparent Power	3000 VA
AC Output Current	3 x 4.5 Amp
AC Output Power	3 kW
Communication Port	WLAN/Ethernet/RS485
Climate Category	4K4H
Connection Type	SUNCLIX/AC Connector
DC Input Power	6000 Watt
DC Input Voltage	850 Volt
DC Max. Input Current	12 Amp
Cooling Method	Convection
DC MPPT Voltage Range	140-800 Volt
DC Nominal Voltage	580 Volt
DC Start-up Voltage	175 Volt
Display Type	Smartphone/Tablet/Laptop
Depth	176 mm
European Weighted Efficiency	96.50%
IP Rating	IP65
Height	470 mm
Efficiency	98.20%
Number of MPPTs	2
Noise Level	30 dBA
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	1/Adjustable-0.8 Overexcited to 0.8 Underexcited
Relative Humidity	100%
Topology	Transformerless
Width	435 mm
