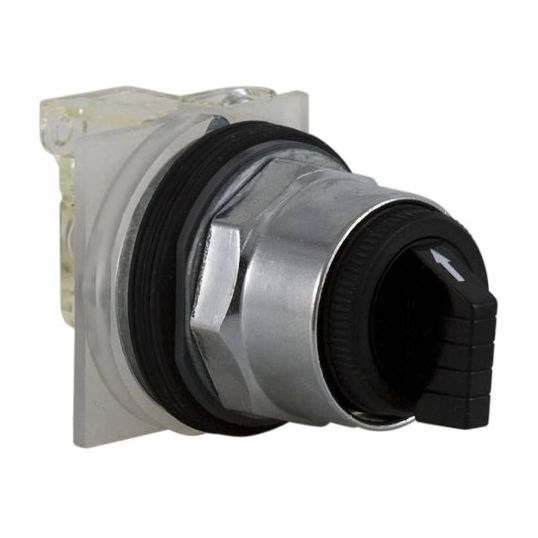

Schneider Rotary Selector Actuator Only 3 Position Metal Body Non Illuminated Spring Return From Left Black 30mm

Description

Rotary Selector Actuator, Spring Return From Left, 240 Volt AC, 125 Volt DC, 3 Amp at 240 Volt AC, 0.55 Amp at 125 Volt DC, 30mm Mounting Hole, 3 Position, Short Lever Operator, Screw Clamp Terminal, IP66, NEMA 1/2/3/3R/4/4X/6/12/3, Panel Mount, Metal Body, Chromium Plated Metal, Black, -25 to 70 deg C

Key Specifications

Barcode (EAN-13)	785901322405
SKU	SQD9001KS63B
Brand	Schneider
Range Name	Square D Class 9001
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	9001KS63B
Colour	Black
Current	3 Amp at 240 Volt AC/0.55 Amp at 125 Volt DC
IP Rating	IP66
Mounting Diameter	30 mm
NEMA Rating	NEMA 1/2/3/3R/4/4X/6/12/3
Mounting Method	Panel
Number of Positions	3
Operator Action	Spring Return Left
Operator Type	Short Lever
Temperature	-25 to 70 deg C
Terminal Connection	Screw Clamp
Voltage	240 Volt AC/125 Volt DC
