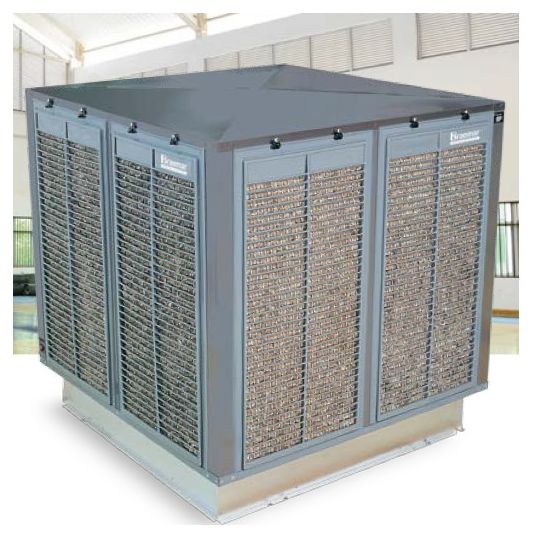

Braemar Evaporative Air Conditioner Fan Motor: 4.3 A 3 Phase 2.5kW

chevron-left
loader
Loading...

Description

chevron-down
Evaporative Air Conditioner, Cooling Air Flow Rate: 4420 l/sec, Fan Motor: 4.3 A, 3 Phase, 2.5 kW, Outdoor 1170mm Height x 1145mm Width x 1145mm Depth, Discharge Type: Aspen Side, Speed Setting: 2 Speed, Powder-Coated Aluminium

Key Specifications

chevron-down
Barcode (EAN-13)
09312168088549
SKU
SEY088549
Brand
Braemar
Range Name
Commercial RPA
Product Type
Evaporative Air Conditioning

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Cabinet:Constructed from mill finish marine grade aluminium for longevity and strength
  • The Fan wheel is a double inlet, multi-blade, forward curve, centrifugal type. Constructed from galvanised steel, the wheel is statically balanced and the blower shaft is resilient mounted in metal housings with, self aligning, single row ball bearings
  • Water Reservoir:Rotational moulded in polyethylene to provide corrosion free long life and durability
  • Fan Motors:Tropic proofed two speed motors with high temperature cut-out are fitted as standard. Three phase coolers have manual re-set overload for added safety
  • Water Connection:Industry standard connections (1/2 Inch BSP) make installation quick and easy
  • Filter Pads:Aspen Fibre or Chillcel is available on selected models throughout this series to provide optimum choice and extended trouble free operation. Filter pad frames are manufactured from powder coated aluminium and fitted with ABS plastic louvres to enhance appearance and improve performance. Braemar filter pads are designed and manufactured to maximise cooling effect
Standard Pack Size 1
UNSPSC Class 40101700
UOM EA
Vendor Product 088549
Cooling Air Flow Rate 4420 l/sec
Discharge Type Aspen Side
Material Powder Coated
Outdoor Dimensions 1170 mm Height x 1145 mm Width x 1145 mm Depth
Power Supply Fan Motor: 4.3 A/3 Phase/2.5 kW
Speed Setting 2 Speed
