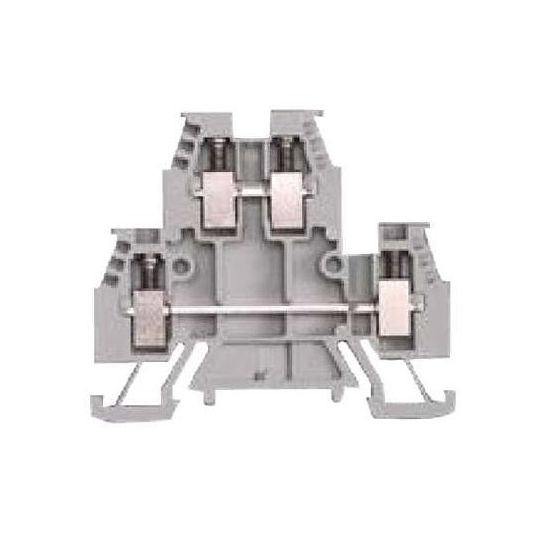

Sprecher+Schuh Rail Terminal Block Double Deck Screwed 2 Wire 2 Level 4mm Grey

Description

Terminal Block Double Deck, 4 mm, 4 Conductors, 500 Volt, 32 Amp, 9 mm Wire Strip Length, 0.6 Nm Tightening Torque, 2 Conductor Wiring Format, 4 Connection Points, 2 Level, Terminal Marking Position, Screw Terminal, Rail Mounting, Grey, 40 to 90 deg C, UL94 V0 Flammability, 64 mm Height, 48.6 mm Width, 6 mm Depth

Key Specifications

SKU	S&SV7-WD4
Brand	Sprecher+Schuh
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7WD4
Colour	Grey
Conductor Size	4.0mm
Current Rating	32 Amp
Flammability	UL94 V0
Depth	6 mm
Height	64 mm
Marking Position	Terminal
Number of Levels	2
Number of Conductors	4
Mounting Method	Rail
Number of Connection Points	4
Temperature	40 to 90 deg C
Terminal Type	Screw
Tightening Torque	0.6 Nm
Voltage Rating	500 Volt
Width	48.6 mm
Wire Strip Length	9 mm
Wiring Format	2 Conductor
