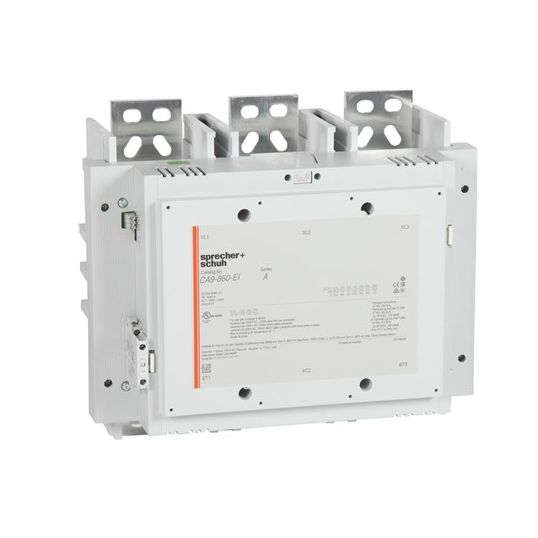

Sprecher+Schuh Non-Reversing Contactor 3 Pole 2650A AC1 100-250VAC/DC 1NO-1NC Auxiliary Electronic

Description

Non-Reversing Contactor, 100-250 Volt AC/DC, AC1 Rating (Amps): 2650 at 1 kV/690 Volt, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 30-60 ms Closing Delay, 45-80 ms Opening Delay, 225 mm Height, 438 mm Width, Electronic Coil

Key Specifications

SKU	S&SCA92650EI11120W
Brand	Sprecher+Schuh
Range Name	CA9
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Simplifies selection with electronic wide range AC/DC coils Saves energy with low power consumption For ease of change over, adaptor plates available in KIT form for CA6 to CA9 migration Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA92650EI11120W
AC1 Rating (Amps)	2650 Amp AC1
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Height	225 mm
Number Of Poles	3 Pole
Operating Coil Voltage	100-250 Volt AC/DC
Operating Time	30-60 ms Closing/45-80 ms Opening
Please Note	Electronic Coil
Width	438 mm
