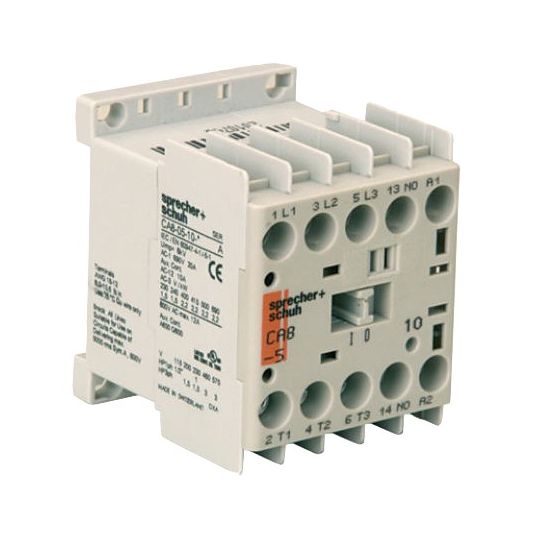

Miniature Contactor General Purpose AC Operated 3 Pole 2.2kW 4.9A AC3 20A AC1 415V 3NO Main 1NO Aux DIN Rail Mount

chevron-left
loader
Loading...

Description

chevron-down
Miniature Contactor General Purpose AC Operated Standard, 415 Volt AC, AC3 Rating (kW): 2.2 at 415/690 Volt, AC3 Rating (Amps): 4.9 at 415 Volt, 2.8 at 690 Volt, AC1 Rating (Amps): 20 at 415 Volt, 3NO Main, 1NO Auxiliary, 3 Pole, Screw Terminal, DIN Rail Mount or Base, IP20, 54 mm Height, 45 mm Width, 49 mm Depth, Conventional Coil

Key Specifications

chevron-down
Barcode (EAN-13)
9321807225443
SKU
S&SCA8-5-10-415VAC
Brand
Sprecher+Schuh
Range Name
CA8
Product Type
Contactors General

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Features low profile design and 45 mm width, permitting the use of enclosures with shallow mounting depths
  • Accessories require no additional panel space
  • Available in AC control coil versions to suit your application requirements
  • Several contactor families provide a wide variety of contactor sizes, offering economy and selection
  • Compact dimensions saves panel space
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product CA8510415VAC
AC1 Rating (Amps) 20 Amp AC1
AC3 Rating (Amps) 4.9/2.8 Amp AC3
AC3 Rating (kW) 2.2 kW
Contact Configuration 3 Normally Opened & 1 Normally Opened Aux
Depth 49 mm
Height 54 mm
IP Rating IP20
Mounting Method DIN Rail/Base
Number Of Poles 3 Pole
Operating Coil Voltage 415 Volt AC
Please Note Conventional Coil
Terminal Connection Screw
Width 45 mm
