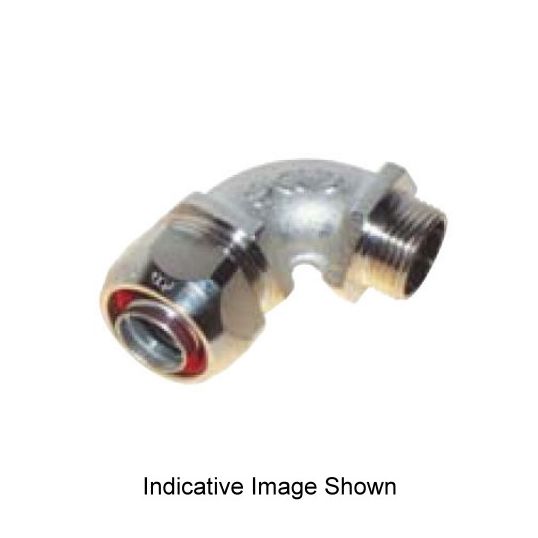

Ramflex Flexible Conduit Gland 90 deg 20mm Size M20 Thread Size Brass Nickel Plated

chevron-left
loader
Loading...

Description

chevron-down
Flexible Conduit Gland, Fixed, Conduit Size: 20 mm, Thread Size: M20, 90 deg Angle, Brass Material, Nickel Plated Finish, IP67 IP Rating, For Use With: Metallic Liquidtight Conduit, 20 x 1.5 mm Thread Length, Temperature: -65 to 205 deg C, 30 m Length, 21 mm External Diameter

Key Specifications

chevron-down
Barcode (EAN-13)
9324514008873
SKU
RFX925-020/10
Brand
Ramflex
Product Type
Glands & Terminators

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 10
UNSPSC Class 39131700
UOM EA
Vendor Product RFX925-020/10
Angle 90 deg
Conduit Size 20 mm
External Diameter 21mm
For Use With Metallic Liquidtight Conduit
IP Rating IP67
Temperature -65 to 205 deg C
Thread Length 20 x 1.5mm
Thread Size M20
