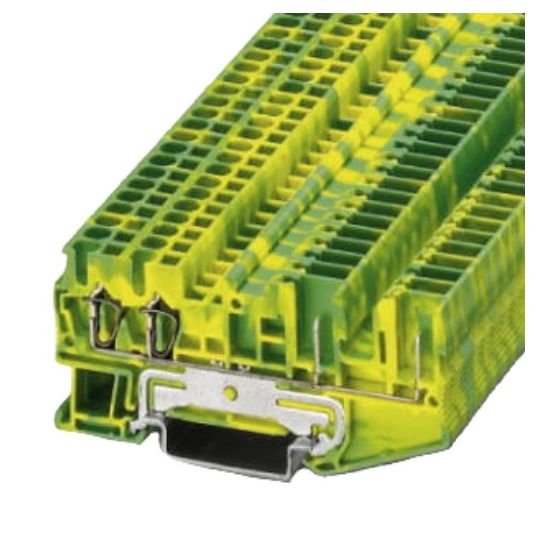

Phoenix Contact Rail Earth Terminal Block Pluggable Spring Cage/Plug-In 2 Wire 1 Level 0.08-4mm Green/Yellow Polyamide

Description

Rail Earth Terminal Block, Pluggable, Rated Surge Voltage: 6 kV, 0.08-4mm Conductor, 2 Conductors, Wire Strip Length: 8 to 10 mm, Wiring Format: 2 Conductor, 4 Connection Points, 1 Level, Spring Cage Terminal/Plug-In, NS 35/15, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 36.5 mm NS 35/7,5, 44 mm NS 35/15, 81 mm Width, 5.2 mm Depth

Key Specifications

SKU	PHO3040041
Brand	Phoenix Contact
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Same shape and pitch as the basic terminal blocks Tested for railway applications
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3040041
Colour	Green/Yellow
Conductor Size	0.08-4mm
Flammability	V0
Depth	5.2 mm
Height	36.5 mm NS 35/75; 44 mm NS 35/15
Insulation Material	Polyamide
Number of Levels	1
Number of Conductors	2
Mounting Method	NS 35/15 - NS 35/75
Number of Connection Points	4
Rated Surge Voltage	6 kV
Terminal Type	Spring Cage/Plug-In
Width	81 mm
Wire Strip Length	8-10 mm
Wiring Format	2 Conductor
