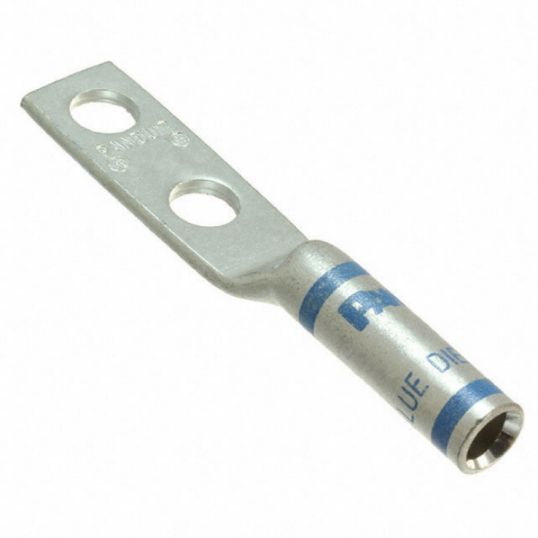

Panduit Crimp Lug Standard Non-Insulated with Two Hole Inspection Window Copper 6 AWG Wire 1/4in Stud 2.36 in

Description

Non-Insulated Crimp Lug, 6 AWG, 1/4 in Stud, Standard Barrel Type, 0.81 in Barrel Length, 2.36 in Overall Length, 2 Hole, 0.22 in Inside Diameter, 0.31 in Outside Diameter, 0.48 in Lug Width, 0.08 in Lug Thickness, P24, Copper Body, Copper, Tin Electroplated, 90 deg C, With Inspection Window

Key Specifications

Barcode (EAN-13)	07498338311
SKU	PANLCD6-14B-L
Brand	Panduit

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Colour-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion For use with stranded copper conductors Blue colour code Standard barrel with inspection window
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	LCD6-14B-L
Barrel Length	0.81 in
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	6 AWG Wire
Crimping Die	P24
Finish	Tin Electroplated
Inside Diameter	0.22 in
Lug Thickness	0.08 in
Lug Width	0.48 in
Number of Holes	2
Outside Diameter	0.31 in
Overall Length	2.36 in
Please Note	with Inspection Window
Stud Size	1/4 in
Temperature	90 deg C
