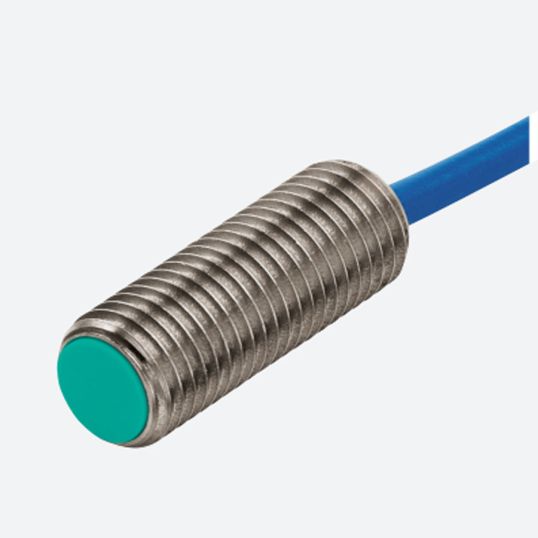

Pepperl+Fuchs Proximity Switch Inductive Sensing Shielded Flush 8.2V NAMUR 1NC 2m L
Loading...
Description
Proximity Switch Inductive Sensing Shielded Flush, Sensing Range: 1.5 mm, NAMUR, 8.2 Volt, NC, 2 mtr Cable, Flush Mount, IP66, IP67, Stainless Steel 1.4305/AISI 303, -25 to 100 deg C
Key Specifications
| SKU |
P&FNJ1.5-8GM-N
|
|---|---|
| Brand |
Pepperl+Fuchs
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | NJ1.5-8GM-N |
| Cable Size | 2 mtr |
| Contact Configuration | Normally Closed |
| IP Rating | IP66/67 |
| Material | Stainless Steel 1.4305/AISI 303 |
| Output Function | NAMUR |
| Operating Voltage | 8.2 Volt |
| Mounting Method | Flush |
| Sensing Range | 1.5 mm |
| Temperature | -25 to 100 deg C |
