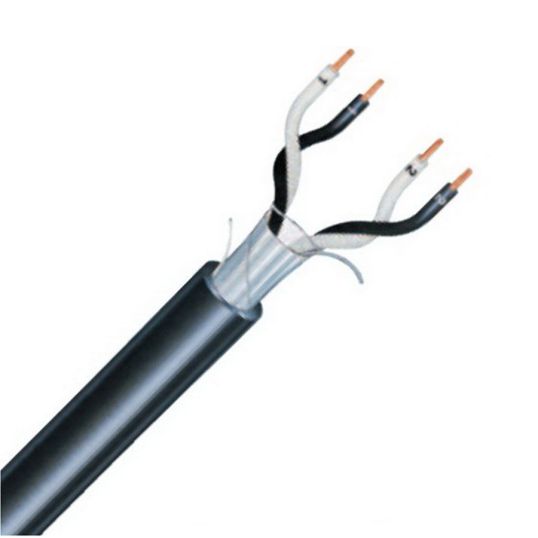

Olex Instrolex Instrumentation Cable Unarmoured 1 Pair Overall Screened 1.5mm PVC/AL/PVC Black
Loading...
Description
Instrumentation Cable Unarmoured, 1.5 mm, Annealed Copper, 1 Pair, 7/0.5 mm Strands, Overall Screened Screen, 6.6 mm Overall Diameter, 40 mm Bend Radius, 0.21 kN Pulling Tension, Aluminium Foil/Polyester Tape Screen, V-90RP PVC Insulation, 5V-90RP PVC Sheath, Black Sheath
Key Specifications
| Barcode (EAN-13) |
99319215074480
|
|---|---|
| SKU |
OLXIEB184-1A9
|
| Brand |
Olex
|
| Range Name |
Instrolex
|
| Product Type |
Instrumentation Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | IEB184AA001CXAA |
| Bend Radius | 40 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | V-90RP PVC |
| Number of Pairs | 1 Pair |
| Overall Diameter | 6.6 mm |
| Pulling Tension | 0.21 kN |
| Screen Format | Overall Screened |
| Screen Material | Aluminium Foil/Polyester Tape |
| Sheath Colour | Black |
| Sheath Material | 5V-90RP PVC |
| Stranding | 7/0.5 mm |
