Jack Outlet Mech Cat5e UTP RJ45 T568A/B White

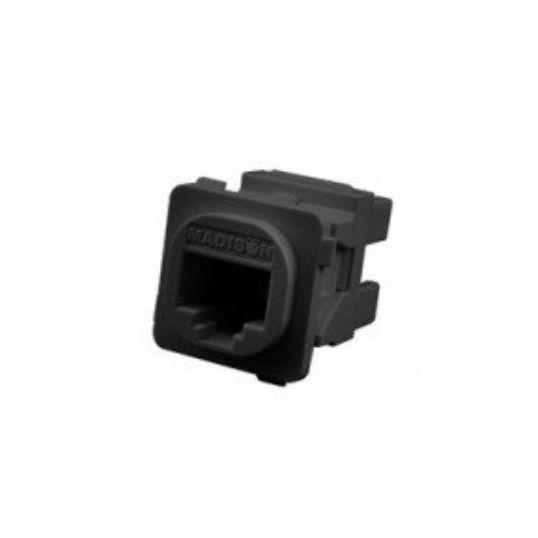

Madison Jack Outlet Mechanism Cat5e UTP RJ45 T568A/B White For Clipsal Style Faceplates


Std Pack Size

You need to be registered and logged in to view product details and pricing

Jack Outlet Mechanism Cat5e UTP RJ45, Solid: 22-24 AWG, RJ45 Connector, Cat5e UTP Cable, >100 MOhm Insulation Resistance, 20 mOhm Contact Resistance, 25 lb Plug Retention Force, 100 MHz Bandwidth, IDC Termination, Wiring Scheme: T568A/B, Flammability: UL94V-0, Thermoplastic Housing, Phosphor Bronze Contact Base, Gold over Nickel Contact Plating, White

Additional Information

Additional Information
Brand Madison
Standard Pack Size 12
UNSPSC Class 39121400
Vendor Product MT54501C
Contact Plating Material Gold over Nickel
Contact Resistance 20 mOhm
Termination Type IDC
Product Type Cat5e Outlets
Connector RJ45
Conductor Size Solid: 22-24 AWG
Contact Base Material Phosphor Bronze
Colour White
Flammability UL94V-0
Wiring Scheme T568A/B
Insulation Resistance >100 MOhm
Frequency Bandwidth 100 MHz
Cable Type Cat5e UTP
Housing Material Thermoplastic
