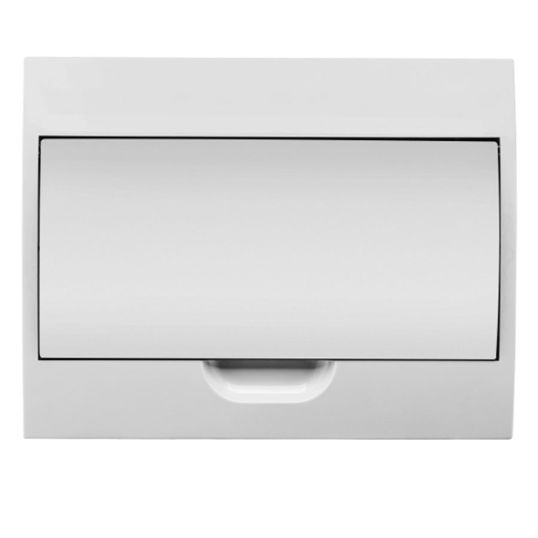

Legrand 12 Pole Load Centre Enclosure Surface Mount 415 Volt 80 Amp Steel Opaque Door
Loading...
Description
Load Centre Enclosure, 415 Volt, 80 Amp, 1 Row, 12 Module, IP40, Surface Mounting, For Use With Electrical and Digital Building Infrastructure, Steel, Light Grey, 210 mm Height x 256 mm Width x 100 mm Depth, Opaque Door
Key Specifications
| Barcode (EAN-13) |
9321001462309
|
|---|---|
| SKU |
LEGHLC12S
|
| Brand |
Legrand
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | HLC12S |
| Colour | Light Grey |
| Current | 80 Amp |
| Dimensions | 210 mm Height x 256 mm Width x 100 mm Depth |
| IP Rating | IP40 |
| For Use With | Electrical and Digital Building Infrastructure |
| Modules | 12 Module |
| Material | Steel |
| Mounting Method | Surface |
| Number of Rows | 1 Row |
| Please Note | Opaque Door |
| Voltage | 415 Volt |
