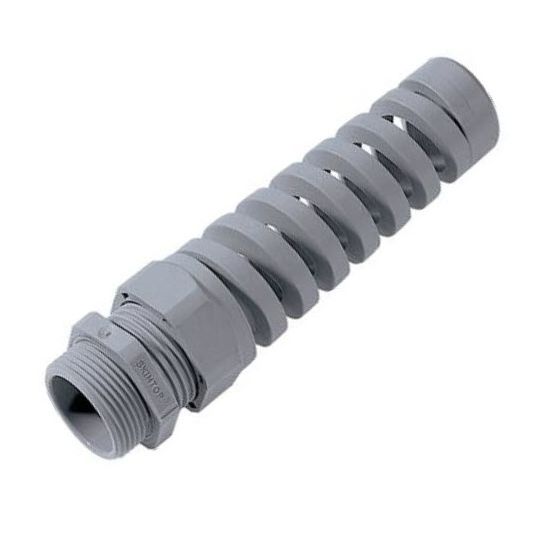

Lapp Kabel Cable Gland Spiral Strain Relief Polyamide M20 x 1.5 7-13mm IP68

Description

Cable Gland Spiral Strain Relief, M20 x 1.5, 9 mm Thread Length, 1.5 mm Pitch, 7 mm Min. Sheath OD, 13 mm Max. Sheath OD, IP68, CR Seal, Polyamide Body, RAL 7001 Grey Finish, -20 to 100 deg C, 101 mm Overall Length, Lock Nut Purchased Separately If Required

Key Specifications

SKU	LAP53111620
Brand	Lapp Kabel
Range Name	Skintop BS-M
Product Type	Cable Glands Non Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Plastic cable gland with bending and anti-kink protection, to protect flexible cables, for moving machine parts Wide clamping range Maximum vibration protection Optimum strain relief Functional reliability Reliable bending and anti-kink protection Application include handheld device, robotics industry, light and sound applications, moving machine parts
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	53111620
Body Material	Polyamide
Finish	Grey
Overall Length	101 mm
IP Rating	IP68
Min. Sheath OD	7 mm
Max. Sheath OD	13 mm
Please Note	w/out Locknut
Seal Material	CR
Thread Pitch	1.5 mm
Temperature	-20 to 100 deg C
Thread Length	9 mm
Thread Size	M20 x 1.5
