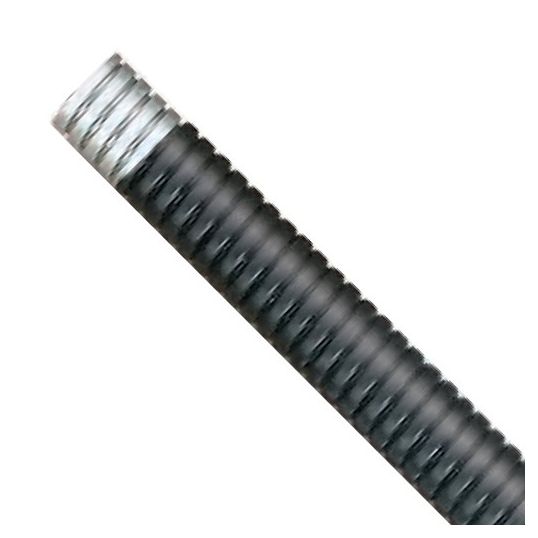

VJC Flexible Conduit Metal Vacuum Jacketed Oil Resistant 25mm 25M Galvanised Steel/PVC Black

Description

Flexible Conduit Vacuum Jacketed Oil Resistant, 25 mm, 21.1 mm Inside Diameter, 26 mm Outside Diameter, 55 mm Bend Radius, IP54/65, -20 to 80 deg C, Black Sheath, 25 mtr Length

Key Specifications

SKU	L&CVJC025BK-25
Brand	VJC
Product Type	Flex Conduit Vacuum Oil Resistant

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	VJC has a flexible galvanised steel core The unique vacuum extrusion process allows this product to have a thin PVC jacket, that does not restrict the great flexibility characteristics of the inner core This product can be used with either two part fittings or compression fittings to achieve IP54 or IP65 protection VJC is oil resistant VJC is suitable in static applications where a tight bend diameter is required and also dynamic use, such as machining centres
Standard Pack Size	25
UNSPSC Class	39131700
UOM	MTR
Vendor Product	VJC025BK-25
Bend Radius	55 mm
Conduit Size	25 mm
Inside Diameter	21.1 mm
IP Rating	IP54/65
Outside Diameter	26 mm
Temperature	-20 to 80 deg C
Sheath Colour	Black
