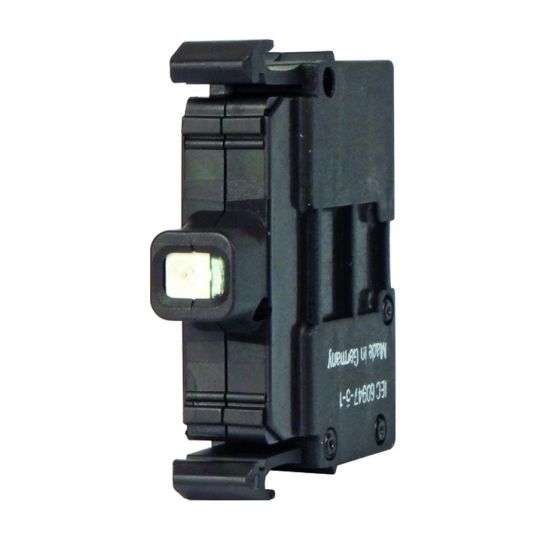

Eaton Moeller Pilot Lamp Block Integrated LED With Screw Terminals 85-264V White Base Mount 22.5 mm

Description

Pilot Lamp Block Integrated LED With Screw Terminals, Size: 22.5 mm, 85-264 Volt AC, 5-15 mA, Integrated LED, Screw Terminal, Base Mount, IP20, -25 to 70 deg C, For Use With: Pilot Lights

Key Specifications

SKU	KLOM22-LEDC230-W
Brand	Eaton Moeller
Range Name	RMQ Titan
Product Type	Pilot Lamp Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Ergonomic design ensuring ease of operation and bright illumination IP66 degree of protection as standard for use in the harshest of industrial environments Fitting in the standard 22.5 mm hole, the snap fitting modular system saves both assembly and fitting time
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	M22-LEDC230-W
For Use With	Pilot Lights
Current	5-15 mA
IP Rating	IP20
Lamp Type	Integrated LED
Mounting Method	Base Plate
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Size	22.5 mm
Voltage	85-264 Volt AC
