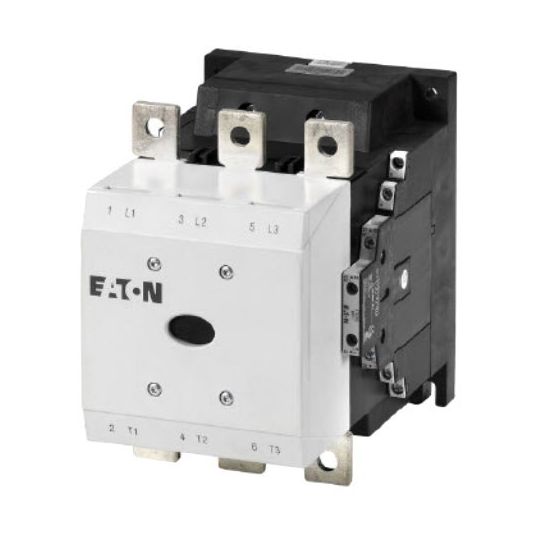

Eaton Moeller Contactor General Purpose DC Operated Non-Reversing 3 Pole 212kW 400A AC3 612A AC1 24-48VDC 2NO-2NC Aux

Description

Contactor General Purpose DC Operated Non-Reversing, 24-48 Volt DC, AC3 Rating (kW): 132 at 1000 Volt, 300 at 660/690 Volt, 212 at 380/400 Volt, AC3 Rating (Amps): 400 at 380/400 Volt, AC1 Rating (Amps): 612 Open, 450 Enclosed, 500 Volt AC, 2NO-2NC Auxiliary, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP00, -40 to 60 deg C, 200 mm Height, 160 mm Width, 216 mm Depth, 3 Phase

Key Specifications

SKU	KLODILM400/22RDC48
Brand	Eaton Moeller
Range Name	Original Series
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Contactors for motors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	DILM400/22(RDC48)
AC1 Rating (Amps)	612/450 Amp AC1
AC3 Rating (Amps)	400 Amp AC3
AC3 Rating (kW)	132/200 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Contact Voltage	500 Volt AC
Depth	216 mm
Height	200 mm
IP Rating	IP00
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	24-48 Volt DC
Please Note	3 Phase
Temperature	-40 to 60 deg C
Terminal Connection	Screw
Width	160 mm
