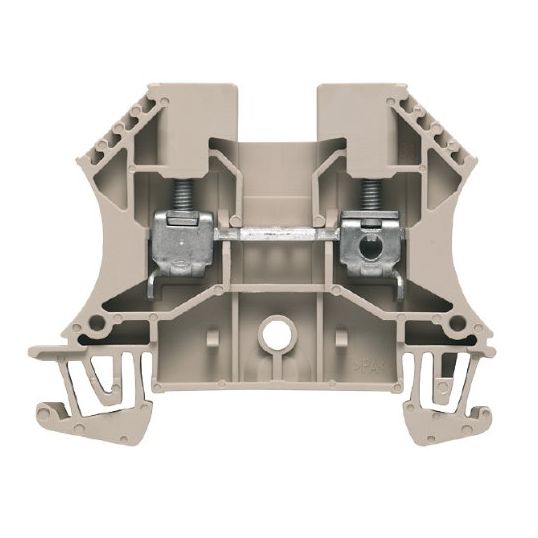

Weidmuller Klippon Rail Terminal Block Feed-Through Screwed 2 Wire 1 Level 4mm Dark Beige Wemid

Description

Rail Terminal Block, Feed-Through, Screwed, 800 Volt, Rated Surge Voltage: 8 kV, 32 Amp, 4mm Conductor, 2 Conductors, Wire Strip Length: 10 mm, Tightening Torque: 0.5 to 1 N/m, Wiring Format: 2 Conductor Through, Side Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking: Ex eb II C Gb, Screw Terminal, TS-35 Rail/Snap-On Mount, Insulation Material: Wemid, Dark Beige, -60 to 130 deg C Continuous Operating, Flammability: V0, Height: 60 mm, 46.5 mm Width, 6.1 mm Depth

Key Specifications

SKU	KLI1020100000
Brand	Weidmuller
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	1020100000-NLA
Colour	Dark Beige
Conductor Size	4.0mm
Current Rating	32 Amp
Flammability	V0
Depth	6.1mm
Height	60mm
Insulation Material	Wemid
Marking	Ex eb II C Gb
Number of Levels	1
Number of Conductors	2
Number of Potentials	1
Mounting Method	TS 35 Rail - Snap-On
Number of Connection Points	2
Rated Surge Voltage	8 kV
Terminal Type	Screw
Tightening Torque	0.5-1 N/m
Wire Entry Orientation	Side
Voltage Rating	800 Volt
Width	46.5mm
Wire Strip Length	10 mm
Wiring Format	2 Conductor Through
