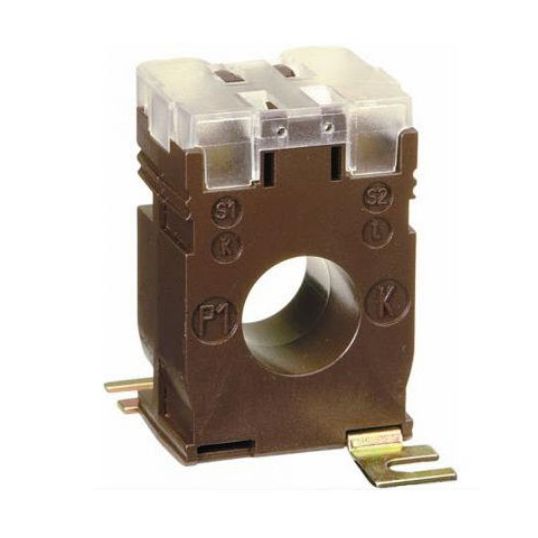

IME Current Transformer For Cable Primary 80A/ Secondary 5A

Description

Current Transformer For Cable, Primary 80 Amp/Secondary 5 Amp, 50 Hz, Insulation Class: B, IP40, IP20, Busbar/Din Rail Mount, Polycarbonate, -25 to 50 deg C, 44 mm Height x 59.5 mm Width x 65 mm Depth

Key Specifications

Barcode (EAN-13)	9321807193407
SKU	IMETAIBB/80/5A
Brand	IME
Range Name	TAIBB
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A broad range of primary currents Cable or busbar type Solid core High accuracy Class 0.5
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	TAIBB805A
Current	Primary 80 Amp/Secondary 5 Amp
Depth	65 mm
Frequency	50 Hz
Height	44 mm
Insulation Class	B
IP Rating	IP40/20
Mounting Method	Busbar/DIN Rail
Temperature	-25 to 50 deg C
Width	59.5 mm
