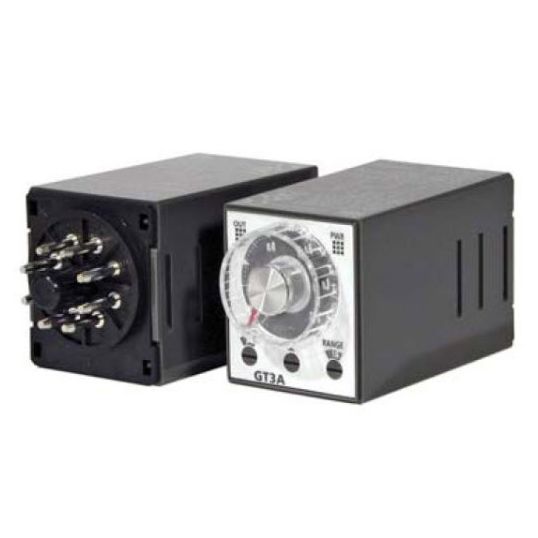

IDEC Time Delay Relay Analogue Panel/Socket Mount Delayed SPDT + instantaneous SPDT Multifunction 0.1s-180Hr 100/240V

Description

Time Delay Relay Analogue, 100/240 Volt AC, 13.5 VA, 8 Pin Plug-In, Delayed SPDT+instantaneous SPDT, Timing Function: Multifunction, Timing Range: 0.1 sec-180 hr, 50000 Electrical, 10000000 Mechanical Cycles, Panel/Socket Mount, Grey, -10 to 50 deg C, 40 mm Height, 36 mm Width, 70 mm Depth

Key Specifications

Barcode (EAN-13)	9322017186890
SKU	IDCGT3A-2AF20
Brand	IDEC
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4 selectable operation modes on each model External start, reset, and pause inputs Panel mount or socket mount Large variety of timing functions Power and output status indicating LEDs
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	GT3A-2AF20
Contact Configuration	Delayed SPDT+instantaneous SPDT
Depth	70 mm
Height	40 mm
Mounting Method	Panel/Socket
Operating Cycles	50000 Electrical/10000000 Mechanical Cycles
Pin Configuration	8 Pin Plug-In
Power Rating	13.5 VA
Temperature	-10 to 50 deg C
Timing Function	Multifunction
Timing Range	0.1 Second-180 Hours
Voltage	100-240 Volt AC
Width	36 mm
