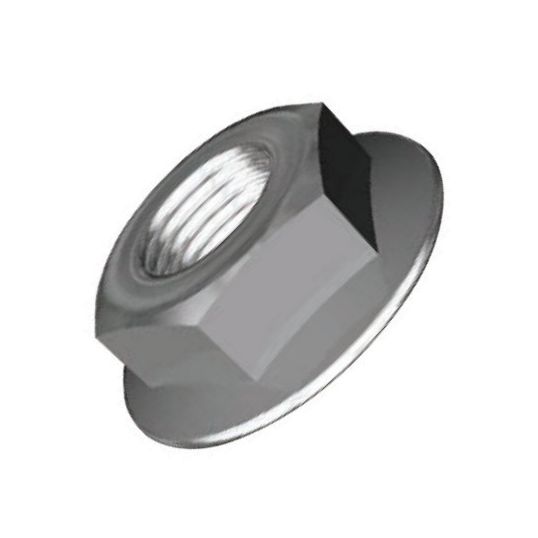

Hobson Hex Flange Nut Serrated M12x1.25 Extra Fine DIN 6923 Class 8 High Tensile Carbon Steel Zinc Passivated Yellow
Loading...
Description
Hex Flange Nut, Serrated, Metric, M12, 1.25 mm Pitch, Hex Head, Extra Fine Thread, 11.6-12 mm Height, 17.73-18 mm Width Across Flat, 20.03-20.7 mm Width Across Corner, Class 8, High Tensile Carbon Steel, Zinc Passivated Yellow, DIN 6923
Key Specifications
| Barcode (EAN-13) |
9350629034261
|
|---|---|
| SKU |
HOBNF08YFM12F
|
| Brand |
Hobson
|
| Product Type |
Strut Fasteners & Fixings
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | NF08YFM12F |
| Grade | Class 8 |
| Fitting Size | M12 |
| Head Type | Hex |
| Imperial-Metric | Metric |
| Height | 11.6-12mm |
| Standards | DIN 6923 |
| Thread Pitch | 1.25mm |
| Thread Type | Extra Fine |
| Width Across Corner | 20.03-20.7mm |
| Width Across Flat | 17.73-18mm |
