Hobson Sleeve Anchor 10x120mm Carbon Steel Zinc Passivated Yellow
Loading...
Description

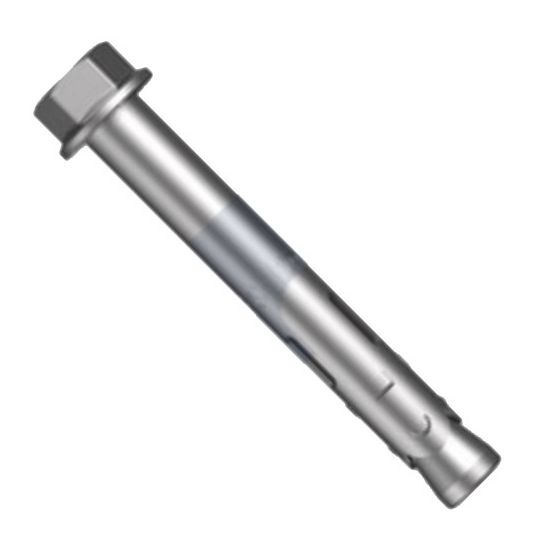

Sleeve Anchor, 10 mm, M8 Thread, 13mm Width Head, 16.8mm Washer Diameter, 120mm Length, 50mm Min Drill Depth, 10mm Drill Diameter, Carbon Steel, Zinc Passivated Yellow, 12mm Fixture Hole Diameter, 100mm Min. Concrete Thickness, 60mm Min. Edge Distance, 60mm Min. Spacing, Torque Rating: 25 N-m
Key Specifications
| Barcode (EAN-13) |
9314818501644
|
|---|---|
| SKU |
HOBMTBMSYM100120
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 25 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | MTBMSYM100120 |
| Drill Diameter | 10mm |
| Drill Depth | 50mm Min |
| Diameter | 10mm |
| Finish | Zinc Passivated Yellow |
| Fixture Hole Diameter | 12mm |
| Head Size | 13mm Width |
| Material | Carbon Steel |
| Minimum Concrete Thickness | 100mm |
| Minimum Edge Distance | 60mm |
| Minimum Spacing | 60mm |
| Product Type | Sleeve Anchor |
| Thread Size | M8 |
| Torque Rating | 25 N-m |
| Washer Diameter | 16.8mm |
