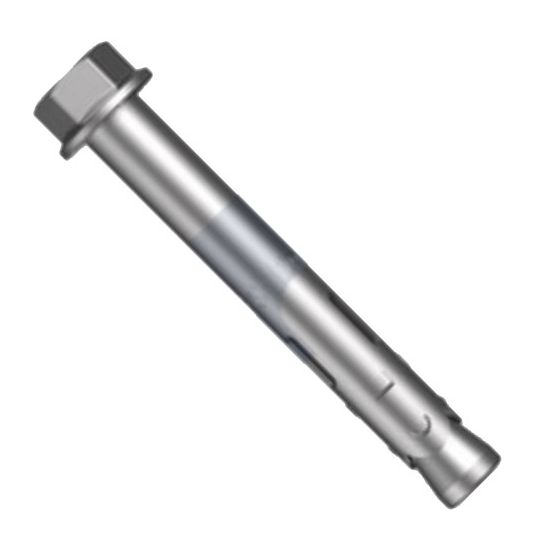

Hobson Sleeve Anchor 10x50mm Carbon Steel Zinc Passivated Yellow
Loading...
Description
Sleeve Anchor, 10 mm Diameter, M8, 13 mm Head Size, 16.8 mm Washer Diameter, 50 mm Length, 50 mm Drill Depth, 10 mm Drill Diameter, 12 mm Fixture Hole Diameter, 100 mm Minimum Concrete Thickness, 60 mm Minimum Edge Distance, 60 mm Minimum Spacing, 25 Nm Torque Rating, Carbon Steel, Zinc Passivated Yellow, 50
Key Specifications
| Barcode (EAN-13) |
9314818500388
|
|---|---|
| SKU |
HOBMTBMSYM100050
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | MTBMSYM100050 |
| Drill Diameter | 10 mm |
| Drill Depth | 50 mm |
| Diameter | 10 mm |
| Finish | Zinc Passivated Yellow |
| Fixture Hole Diameter | 12 mm |
| Head Size | 13 mm |
| Material | Carbon Steel |
| Minimum Concrete Thickness | 100 mm |
| Minimum Edge Distance | 60 mm |
| Pack Size | 50 Pack |
| Minimum Spacing | 60 mm |
| Product Type | simple |
| Thread Size | M8 |
| Torque Rating | 25 Nm |
| Washer Diameter | 16.8 mm |
