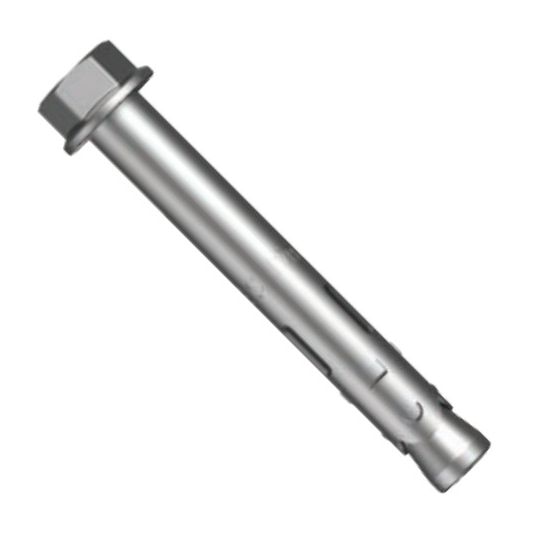

Hobson Sleeve Anchor 12x100mm 316 Stainless Steel
Loading...
Description
Sleeve Anchor, 12 mm Diameter, M10, 15 mm Head Size, 20.3 mm Washer Diameter, 100 mm Length, 60 mm Drill Depth, 12 mm Drill Diameter, 14 mm Fixture Hole Diameter, 100 mm Minimum Concrete Thickness, 75 mm Minimum Edge Distance, 75 mm Minimum Spacing, 40 Nm Torque Rating, 316 Stainless Steel, 316 Stainless Steel, 20
Key Specifications
| Barcode (EAN-13) |
9314818333030
|
|---|---|
| SKU |
HOBMTB16PM120100
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 20 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | MTB16PM120100 |
| Diameter | 12 mm |
| Drill Diameter | 12 mm |
| Drill Depth | 60 mm |
| Finish | 316 Stainless Steel |
| Fixture Hole Diameter | 14 mm |
| Head Size | 15 mm |
| Material | 316 Stainless Steel |
| Minimum Concrete Thickness | 100 mm |
| Minimum Spacing | 75 mm |
| Minimum Edge Distance | 75 mm |
| Pack Size | 20 Pack |
| Product Type | simple |
| Thread Size | M10 |
| Torque Rating | 40 Nm |
| Washer Diameter | 20.3 mm |
