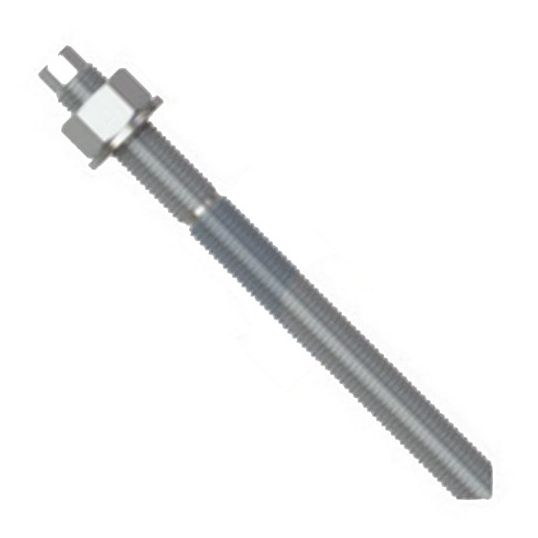

Hobson Stud Chemical Anchor Kit with External Hex Drive M20x260mm Class 5.8 Hot Dip Galvanised

Description

Stud Chemical Anchor Kit with External Hex Drive, M20, M20 Thread, Hex Nut Head, 30mm Socket Head, 260mm Length, 25mm Drill Diameter, Class 5.8, Hot Dip Galvanised, 170mm Embedment Depth, 50mm Max. Fixture Thickness, 22mm Fixture Hole Diameter, 220mm Min. Concrete Thickness, 85mm Min. Edge Distance, 85mm Min. Spacing, Tensile Strength: 520 MPa, Torque Rating: 120 N-m, Chisel Point

Key Specifications

Barcode (EAN-13)	9314818501064
SKU	HOBMCA58GCM200260H
Brand	Hobson

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good load capability Non expanding type fastener Resistant to vibration Complete sealing of hole Can be installed close to edge Reduced spacing between anchors Excellent holding power in weak base materials
Standard Pack Size	10
UNSPSC Class	31162100
UOM	EA
Vendor Product	MCA58GCM200260H
Drill Diameter	25mm
Diameter	M20
Embedment Depth	170mm
Finish	Hot Dip Galvanised
Fixture Hole Diameter	22mm
Grade	Class 5.8
Head Size	30mm Socket
Head Type	Hex Nut
Maximum Fixture Thickness	50mm
Minimum Concrete Thickness	220mm
Minimum Edge Distance	85mm
Minimum Spacing	85mm
Please Note	Chisel Point
Product Type	simple
Tensile Strength	520 MPa
Thread Size	M20
Torque Rating	120 N-m
