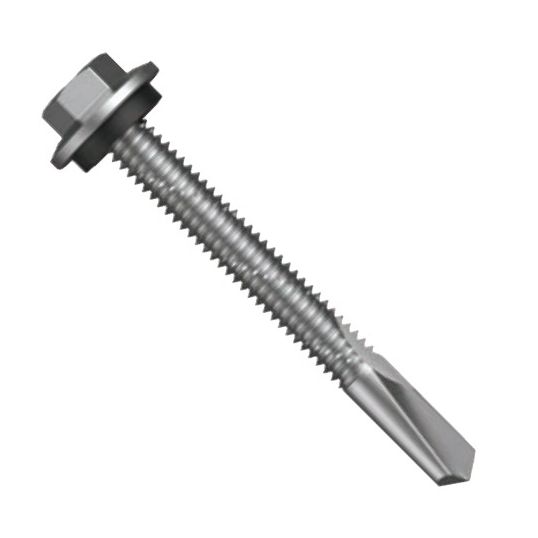

Hobson DRiLLX Series 500 Self Drilling Screw 12Gx32mm Hex Flanged Drill Point Class 4 Galvanised
Loading...
Description
Self Drilling Screw, 5.5 mm Diameter, 12G, 24 TPI, Fully Threaded, Fine, EPDM Washer Type, Hex Drive, 5/16 Inch Drive, Drill Point, Hex Flanged Head, 32 mm Overall Length, 11.4 mm Head Diameter, Class 4 Grade, C1022 Hardened Carbon Steel, Galvanised Steel, AS3566, 1000 Pack, With Sealing Washer
Key Specifications
| Barcode (EAN-13) |
9350499002186
|
|---|---|
| SKU |
HOBFST9P54SH1224032
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 31161500 |
| UOM | EA |
| Vendor Product | FST9P54SH1224032 |
| Diameter | 5.5 mm |
| Drive Size | 5/16 inch |
| Drive Type | Hex |
| Finish | Galvanised Steel |
| Grade | Class 4 |
| Head Diameter | 11.4 mm |
| Head Type | Hex Flanged |
| Material | C1022 Hardened Carbon Steel |
| Overall Length | 32 mm |
| Pack Size | 1000 Pack |
| Please Note | with Sealing Washer |
| Point Type | Drill |
| Product Type | simple |
| Standards | AS3566 |
| Screw Gauge | 12G |
| Thread Count | 24 TPI |
| Washer Type | EPDM |
| Thread Type | Fully Threaded/Fine |
