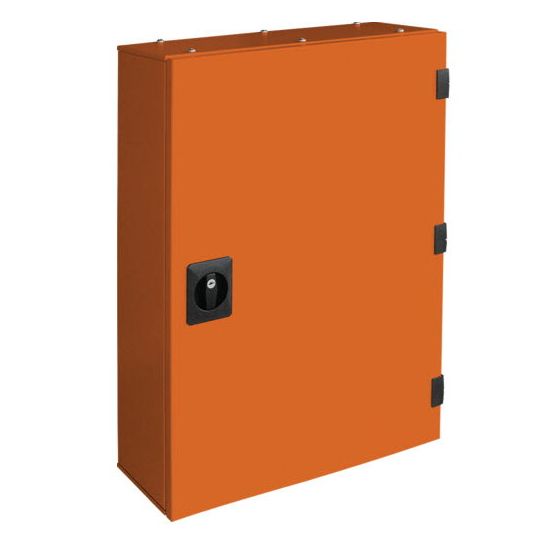

Hager Elite MCB Panelboard W/250A Main Switch Split Chassis Surface 36/18P 1.6mm Galvanised Steel X15 Orange IP66

Description

Modular MCB Panelboard, Split Chassis, 250 Amp, Number of Poles: 60 (36 Top and 18 Bottom), Keylock and Field Reversible Door, Surface, For Use With: MCBs, IP66, 1.6mm Galvanised Steel, X15 Orange, 1400mm Height x 600mm Width x 250mm Depth

Key Specifications

Barcode (EAN-13)	9329659004278
SKU	HAGJPE3618S25DX
Brand	Hager
Range Name	Performa Elite
Product Type	Panelboards MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Removable 24 pole DIN section at bottom Increased depth to 250 mm Removable gland plates as standard Split chassis option Split neutral and earth links with bridged neutrals Choice of incomer switches or MCCB device 2 x 6 pole DIN Fault current rated at 20 kA for 0.2 sec Field reversible door and hinged escutcheon Swing handle with key lock
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	JPE3618S25DX
Colour	Orange
Current	250 Amp
Dimensions	1400mm Height x 600mm Width x 250mm Depth
Door Type	Keylock/Field Reversible
IP Rating	IP66
Material	1.6mm Galvanised Steel
Mounting Method	Surface
Number Of Poles	60P
