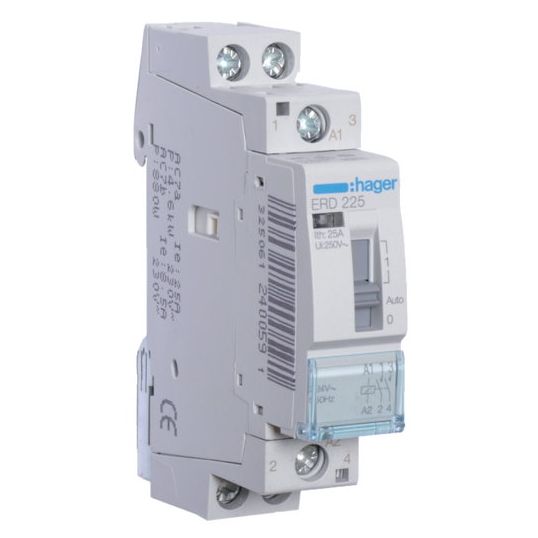

Hager Override Contactor DIN 4.6kW AC3 25A 24V 2NO 1 Pole DIN Rail Mount

Description

Override Contactor DIN, 24 Volt AC, 2NO, AC3 Rating (kW): 4.6, AC3 Rating (Amps): 25, 1 Pole, Operating Time: 25 ms NC, 15 ms NO, IP2X, DIN Rail Mount, -10 to 50 deg C, 83 mm Height, 17.85 mm Width, 60 mm Depth

Key Specifications

Barcode (EAN-13)	3250612400591
SKU	HAGERD225
Brand	Hager
Product Type	Contactors DIN

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ERD225
AC3 Rating (Amps)	25 Amp AC3
Contact Configuration	2 Normally Opened
AC3 Rating (kW)	4.6 kW
Depth	60 mm
Height	83 mm
IP Rating	IP2X
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	25 ms NC/15 ms NO
Temperature	-10 to 50 deg C
Width	17.85 mm
