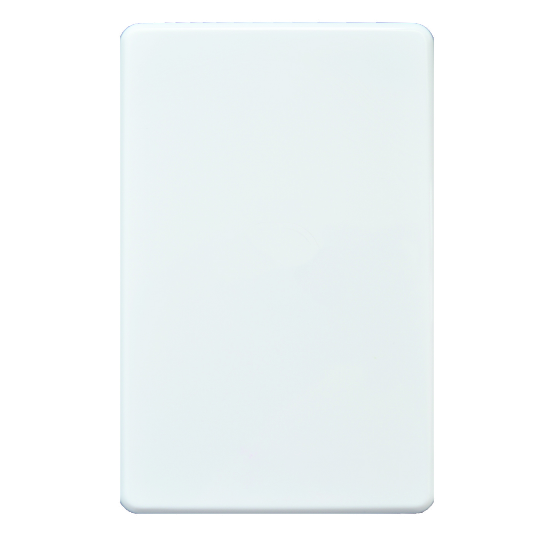

GSME Switch Cover Plate Flush Mount Standard Blank Vertical White

Description

Switch Cover Plate, Vertical Orientation, Flush/Clip-On Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 116.5 mm Height, 25.8 mm Width, 75.5 mm Depth, 13 mm Thickness

Key Specifications

Barcode (EAN-13)	9349703004368
SKU	GSMPUSWPVXG
Brand	GSME Trader
Range Name	Puma
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 4 x 1.5 sq-mm cabling with 4.1 mm bore Slotted head screws for the terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Standard colour is white. Black also stocked
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	PUSWPVXG
Depth	75.5 mm
Colour	White
Height	116.5 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Flush/Clip-On
Orientation	Vertical
Width	25.8 mm
Thickness	13 mm
