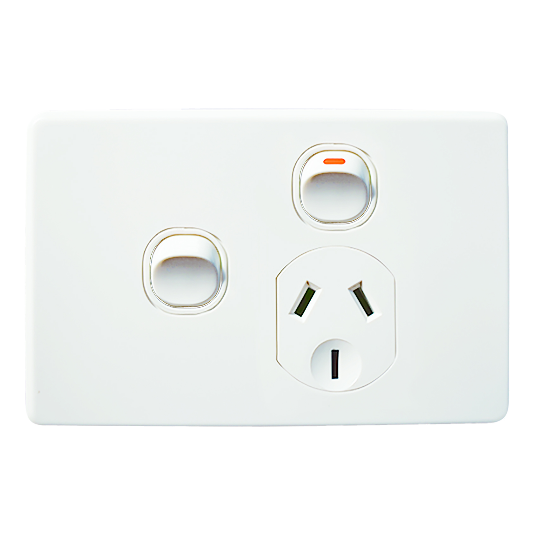

GSME Single Power Point Flush Mount Standard 10A 250V 1 Extra Switch Horizontal White

Description

GPO Switched Outlet, 250 Volt Switch, 10 Amp, 2 Pin Flat, 1 Gang, Horizontal Orientation, Flush Mounting, 84 mm Mounting Centres, Screw Connection, Rocker Switch/Button Actuator, 4 x 2.5 sq-mm Terminal Capacity, UV Stabilised Polycarbonate, White, 75.5 mm Height, 116.5 mm Width, 28.1 mm Depth

Key Specifications

Barcode (EAN-13)	9349703004832
SKU	GSMPUPPSW1G
Brand	GSME Trader
Range Name	Puma
Product Type	GPO Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Power point terminals have 5.7 mm bore to suit 4 x 2.5 sq-mm cable Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Extra removable switch Standard colour is white. Black also stocked
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	PUPPSW1G
Actuator Type	Rocker Switch/Button
Colour	White
Connection Type	Screw
Current	10 Amp
Depth	28.1 mm
Height	75.5 mm
Mounting Centres	84 mm
Material	UV Stabilised Polycarbonate
Mounting Method	Flush
Number Of Gangs	1 Gang
Orientation	Horizontal
Pin Configuration	2 Pin Flat
Terminal Capacity	4 x 2.5 sq-mm
Width	116.5 mm
