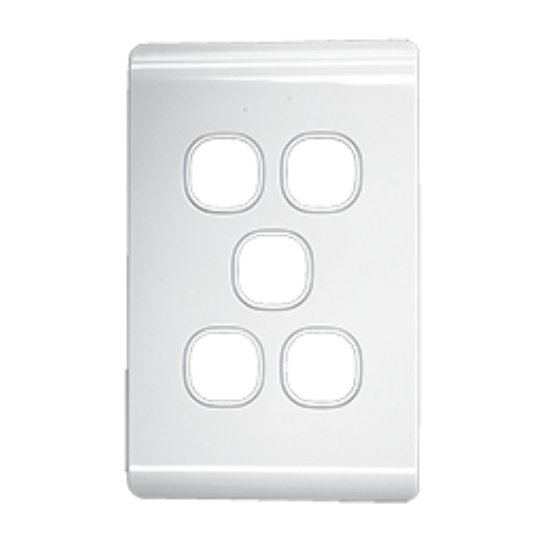

GSME Switch Grid & Cover Flush Mount Standard 5 Gang Vertical White

Description

Switch Grid and Cover Plate, 250 Volt Switch, 20 Amp/16 AX, 5 Gang, 2 Way, Screw Connection, Brass Tunnel Terminal, 4 x 1.5 sq-mm Terminal Capacity, Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 114.8 mm Height, 72.7 mm Width, 25.4 mm Depth

Key Specifications

Barcode (EAN-13)	9349703011960
SKU	GSMLESWPV5G
Brand	GSME Trader
Range Name	Leopard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Less mechanism Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are two way with looping terminal and suit 4 x 1.5 sq-mm cabling with 4.1 mm bore Slotted head screws for the terminals
Standard Pack Size	10
UNSPSC Class	39122200
UOM	EA
Vendor Product	LESWPV5G
Colour	White
Connection Type	Screw
Current	20 Amp/16 AX
Depth	25.4 mm
Height	114.8 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	5 Gang
Number Of Ways	2
Orientation	Vertical
Terminal Capacity	4 x 1.5 sq-mm
Terminal Type	Brass Tunnel
Width	72.7 mm
