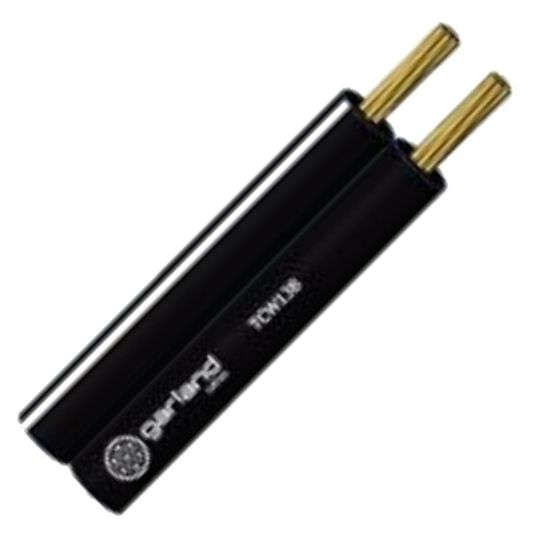

Garland Pro Series Speaker Cable 2 Core Figure 8 4.34mm 240V PVC Black

Description

Speaker Cable, 2 Core, Figure 8, 4.34 mm, Bare Copper, 240 Volt, 138/0.2 mm Strands, Bend Radius: Static - 45 mm, 0.7 mm Insulation Thickness, Elongation: Insulation - >100%, 606 N Pulling Tension, Conductor Resistance: DC - 5.43 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, Unsheathed, Black Insulation, -15 to 70 deg C, AS/NZS 1125, AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329849003395
SKU	GARTCW138BK100
Brand	Garland
Product Type	Speaker Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TCW138BK100
Bend Radius	Static 45 mm
Conductor Resistance	DC: 5.43 Ohm/km
Conductor Size	4.34 mm
Conductor Type	Bare Copper
Elongation	Insulation: >100%
Insulation Colour	Black
Insulation Resistance	50 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Pulling Tension	606 N
Sheath Material	Unsheathed
Temperature	-15 to 70 deg C
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	138/0.2 mm
Voltage	240 Volt
