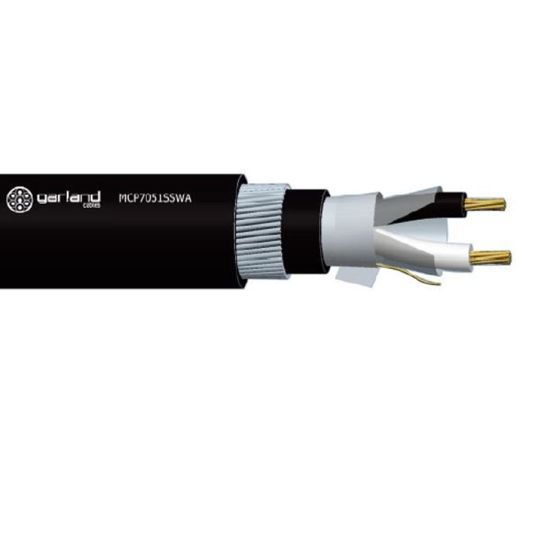

Garland Pro Series Instrumentation Cable Armoured 1 Pair Overall Screened 1.5mm 110/150V PVC/SWA/PVC Black

Description

Instrumentation Cable, Armoured, 1 Pair, Overall Screened, 1.5 mm, Plain Annealed Copper, 110/150 Volt, 7/0.5 mm Strands, 10.7 mm Overall Diameter, Bend Radius: Static - 130 mm, 0.3 mm Insulation Thickness, 1.4 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, 1819 N Pulling Tension, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: 13.6 Ohm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Steel Wire Armour, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black White & Numbered Cores, Black Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329849004811
SKU	GARMCP7051SSWA500
Brand	Garland
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP7051SSWA500
Armour Material	Steel Wire
Bend Radius	Static: 130 mm
Conductor Size	1.5 mm
Conductor Resistance	13.6 Ohm/km
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Insulation Material	V-90HT PVC
Insulation Thickness	0.3 mm
Number of Pairs	1 Pair
Overall Diameter	10.7 mm
Screen Format	Overall Screened
Pulling Tension	1819 N
Screen Coverage	100%
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	7/0.5 mm
Temperature	-15 to 90 deg C
Voltage	110-150 Volt
