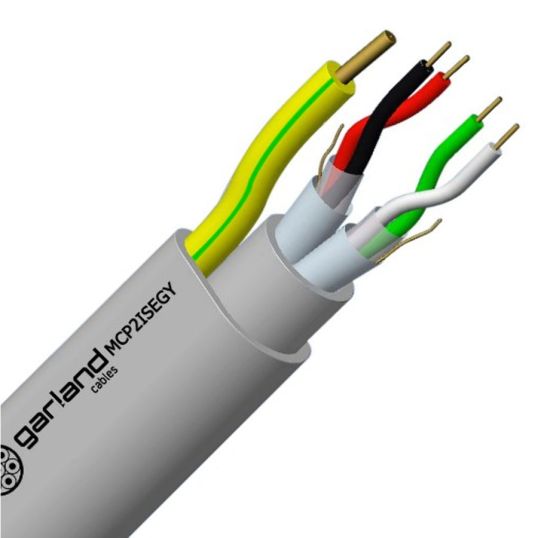

Garland 0.34mm 2 Pair Instrumentation Cable Unarmoured Individually Screened

Description

Instrumentation Cable, Unarmoured, 0.34 mm, Annealed Copper, 2 Pair, 7/0.25 mm Strands, Individually Screened Screen, 5 mm Overall Diameter, 50 mm Static Bend Radius, 48 N Pulling Tension, DC: 55.1 Ohm/km Conductor Resistance, 0.2 mm Insulation Thickness, 0.5 mm Sheath Thickness, 100% Screen Coverage, Tinned Annealed Copper Braid/Aluminium/Polyester Tape Screen, Black/Red/Green/White Core, Polypropylene Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/CA S008 AS 1049

Key Specifications

Barcode (EAN-13)	9329849014964
SKU	GARMCP2ISGY500W
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP2ISGY500W
Bend Radius	Static 50 mm
Conductor Resistance	DC: 55.1 Ohm/km
Conductor Size	0.34 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/White
Insulation Material	Polypropylene
Number of Pairs	2 Pair
Insulation Thickness	0.2 mm
Overall Diameter	5 mm
Pulling Tension	48 N
Screen Coverage	100%
Screen Format	Individually Screened
Screen Material	Tinned Annealed Copper Braid/Aluminium/Polyester Tape
Sheath Colour	Grey
Sheath Thickness	0.5 mm
Sheath Material	PVC
Standards	AS/CA S008 AS 1049
Stranding	7/0.25 mm
Temperature	-15 to 70 deg C
